Eaton Thermoplastic Electromagnetic Door Holder, 50kg, 24V, Black, Release Button (13050-CSA)
SKU
13050-CSA
£64.43
£53.69
The Eaton 13000 series electromagnetic door release unit is a reliable solution for fire doors. Encased in a durable plastic case, it features a red release button for easy access. With a built-in spring release and dual protection diodes, it swiftly overcomes magnetic forces and ensures safe door release. It offers convenient inputs for hose and cable connections.
- Buy 10 for £63.43 £52.86 each and save 2%
- Buy 20 for £62.45 £52.04 each and save 3%
- Buy 50 for £61.45 £51.21 each and save 5%
Limited Stock
Product Details for Eaton Thermoplastic Electromagnetic Door Holder, 50kg, 24V, Black, Release Button (13050-CSA)

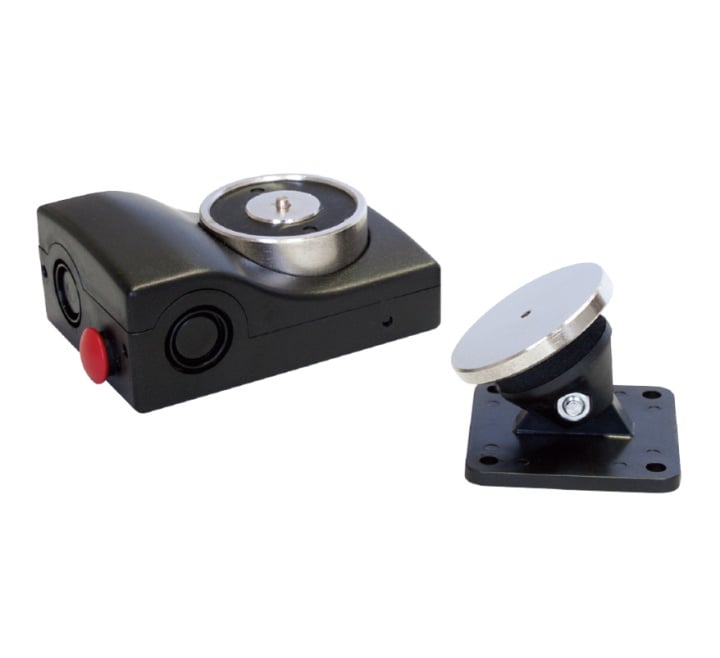

The Eaton 13000 series electromagnetic door release unit is specifically designed for fire doors, enclosed in a durable plastic case. It features a prominent red release button for easy access.
Equipped with a built-in spring release, it swiftly and reliably releases the door by overcoming residual magnetic forces. The circuit includes dual protection diodes to safeguard against disturbances and polarity reversals.
The unit offers three lateral inputs for connecting 16 or 20 mm hoses and one back input for cables with a maximum diameter of 10 mm.
Key Features of the 13050-CSA |
|---|
|
> 24V powered
> EN 1155 approved > Modern design > Holding strength 50kg > Low current consumption > Release button and protection circuit > Damping counter plate included |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | 13050-CSA |
Write Your Own Review
FAQ’s for Eaton Thermoplastic Electromagnetic Door Holder, 50kg, 24V, Black, Release Button (13050-CSA)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Thermoplastic Electromagnetic Door Holder, 50kg, 24V, Black, Release Button (13050-CSA)
| Product: | Eaton Electromagnetic Door Release, Thermoplastic |
| Catalogue no.: | 13050-CSA |
| Holding strength: |
50 kg/490 N |
| Nominal voltage: |
24Vdc |
| Nominal current: |
45 mA |
| Release button: |
Yes |
| Door status: | No |
| Connection type: |
Terminals |
| Protection diodes: | 2 |
| Housing material: |
White ABS |
| Core material: |
Steel |
| Keeper plate material: | Black ABS support, steel plate |
| Operation: | Automatic release in event of power failure |
| Operating temperature: | -10oC - +55oC |
| Standard equipment: |
Flexible keeper plate, Release button, protection diodes |
| Weight: | 0.56 kg |
