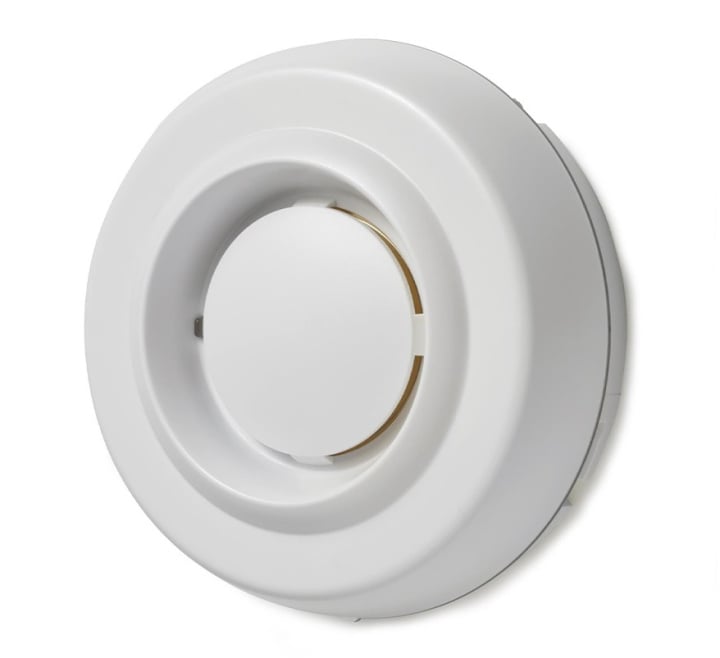

Siemens FDS224-W Cerberus PRO Wall Sounder (White) (No Base) (S54364-F2-A1)
SKU
S54364-F2-A1
£56.77
£47.31
Siemens FDS224-W Cerberus PRO Wall Sounder (White) (No Base) (S54364-F2-A1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDS224-W Cerberus PRO Wall Sounder (White) (No Base) (S54364-F2-A1)
Siemens Sounder in White housing, requires base FDB226-W or FDB227-W.
The device provides an alarm in an addressed fire detection system and activates an acoustic alarm signal in the event of a fire alarm. It is mounted on the wall e. g. along escape routes, corridors, staircases and offices. The sound level and the tones are adjustable, the devices are synchronized.
Supply and communication via FDnet/C-NET, no auxiliary power needed. The device automatically monitors its acoustic function.
The base must be ordered separately.
Key Features of the S54364-F2-A1 |
|---|
|
> White
> Provides an alarm in an addressed fire detection system FS20/FS720 > Activates an acoustic signal in the event of a fire alarm > 16 tones ex-factory. > Has its own device address and can be configured independently > Supply and communication via FDnet/C-NET, no auxiliary power needed > Automatically monitors its acoustic function > Base must be ordered separately |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDS224-W |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDS224-W Cerberus PRO Wall Sounder (White) (No Base) (S54364-F2-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDS224-W Cerberus PRO Wall Sounder (White) (No Base) (S54364-F2-A1)
| Product: | Siemens FDS224-W Sounder in white housing |
| Product code: | S54364-F2-A1 |
| Dimensions: |
Ø:116mm x D:42.7mm |
| Standard: | EN 54-3 , EN 54-17 |
| Operating voltage: | DC 12 - 33V |
| Operating current: | 4mA (sound activated) |
| Quiescent current: | 250 μA |
| Sound intensity: |
75 - 99 dB(A) |
| Cable capacity: | 0.2 - 2.5mm2 |
| Operating temperature: | -25 to +70 °C |
| Storage temperature: | -30 to +75 °C |
| Protection category: | IP33C; IP65 with base deep |
| Relative humidity: | ≤95 % rel. |
| No. of sounds: |
16 |
| System compatibility: |
FDnet -> FS20 (MP7) C-NET -> FS720 (IP7)
|
| Communication protocol: |
FDnet/C-NET
|
| Colour: | Pure White, ~RAL 9010 |
