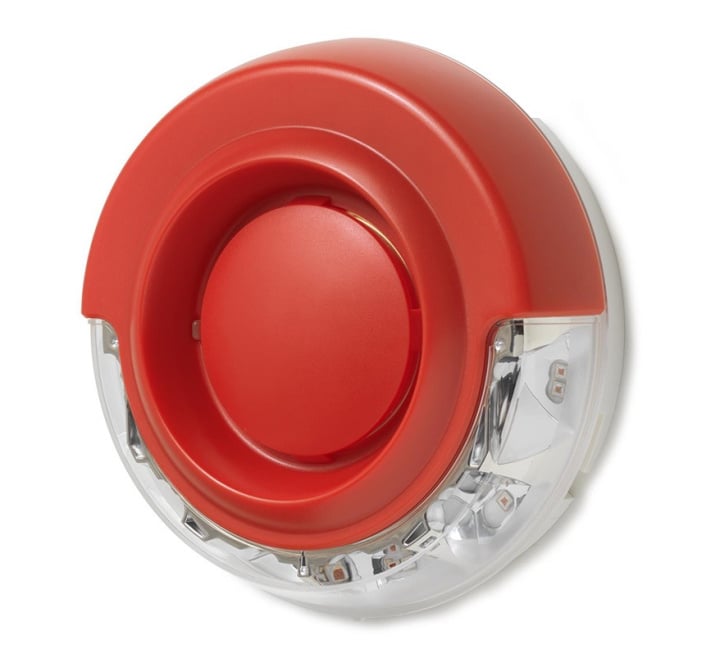

Siemens FDS226-RR Cerberus PRO Wall Sounder Beacon (Red Housing, Red LED) (No Base) (S54364-F5-A1)
SKU
S54364-F5-A1
£77.96
£64.97
Siemens FDS226-RR Cerberus PRO Wall Sounder Beacon (Red Housing, Red LED) (No Base) (S54364-F5-A1)
In Stock
Product Details for Siemens FDS226-RR Cerberus PRO Wall Sounder Beacon (Red Housing, Red LED) (No Base) (S54364-F5-A1)
Siemens Sounder Beacon, Red LED, Red housing, requires base FDB226-R or FDB227-R (S54364-F5-A1)
The device provides an alarm in an addressed fire detection system and activates an acoustic and optical alarm signal in the event of a fire alarm.
It is mounted on the wall e. g. along escape routes, corridors, staircases and offices. The sound level, the tones and the luminous intensity are adjustable, the devices are synchronized.
Supply and communication via FDnet/C-NET, no auxiliary power needed. The device automatically monitors its beacon and acoustic function.
The base must be ordered separately.
Key Features of the S54364-F5-A1 |
|---|
|
> Activates both an acoustic and an optical alarm signal (Red LEDs flashing)
> Mounted on the wall e. g. along escape routes, corridors, staircases and offices > The sound, tones and luminous intensity levels are adjustable > Synchronized > Supply and communication via FDnet/C-NET, no auxiliary power needed > Automatically monitors its beacon and acoustic function > The base must be ordered separately |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDS226-RR |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Red |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDS226-RR Cerberus PRO Wall Sounder Beacon (Red Housing, Red LED) (No Base) (S54364-F5-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDS226-RR Cerberus PRO Wall Sounder Beacon (Red Housing, Red LED) (No Base) (S54364-F5-A1)
| Product: | Siemens Sounder Beacon |
| Product code: | S54364-F5-A1 |
| Dimensions: |
Ø:116mm x D:42.7mm |
| Standard: | EN 54-3 , EN 54-23 , EN 54-17 |
| Operating voltage: | DC 16 - 33V |
| Operating current: | 4 - 27mA (tone/beacon activated) |
| Quiescent current: | 400 μA |
| Sound intensity: |
75 - 99 dB(A) |
| Light intensity: | High = W-2.8-8.8 Medium = W-2.4-7.5 Low = O-2-6.2 Indicator |
| Cable capacity: | 0.2 - 2.5mm2 |
| Operating temperature: | -25 to +70 °C |
| Storage temperature: | -30 to +75 °C |
| Protection category: | IP33C; IP65 with base deep |
| Relative humidity: | ≤95 % rel. |
| No. of sounds: |
16 |
| No. of addresses: | 1 |
| System compatibility: |
FDnet -> FS20 (MP7) C-NET -> FS720 (IP7)
|
| Communication protocol: |
FDnet/C-NET
|
| Colour: | Flame Red, ~RAL 3000 |
| LED colour: | Red |
