Signaline Universal Connector Box (SL-UCB)
SKU
SL-UCB
£66.23
£55.19
Signaline Universal Connector Box (SL-UCB)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Signaline Universal Connector Box (SL-UCB)

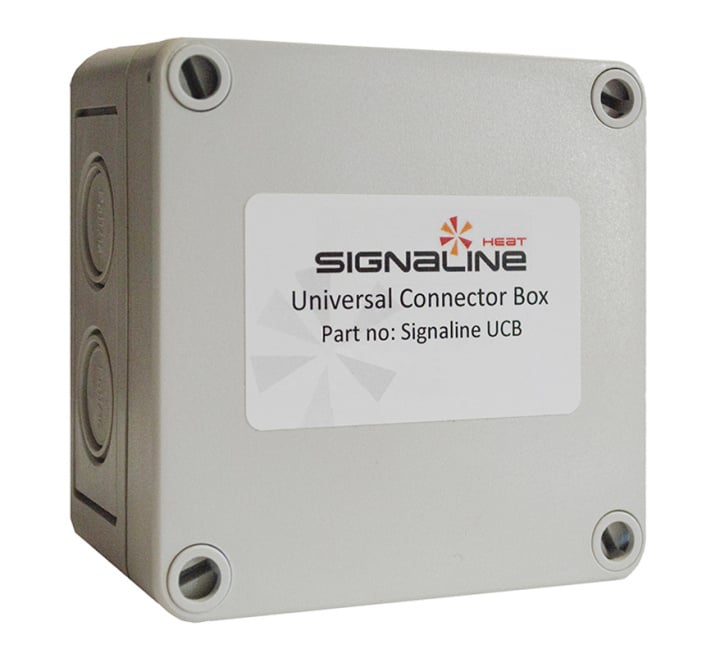

The Signaline Universal Connector Box (Signaline UCB) is suitable for use with all variants of Signaline FT-68, FT-88, FT-105 and HD. A UCB can be used as an end of line enclosure, junction box or an interposing line unit (see right). It is supplied with cable glands, 1x terminal block, 1x 470Ω resistor and 1x 680Ω resistor. Included resistors allow Signaline FT cable to be connected directly to the zone terminals of most conventional fire control panels. This product is not suitable for use with Signaline-185-R.
Key Features of the SL-UCB |
|---|
|
> Compatible with Signaline HD & FT
> IP66 rated > EOL, junction box, or interposing line unit > Resistant to most acids, alkalis & oils > Supplied with cable glands, 1x terminal block, 1x 470Ω resistor and 1x 680Ω resistor |
| Brand | Signaline |
|---|---|
| Manufacturer Part No. | SL-UCB |
Write Your Own Review
FAQ’s for Signaline Universal Connector Box (SL-UCB)
No questions yet. Be the first to ask the question!
Product Specification for Signaline Universal Connector Box (SL-UCB)
| Model: |
Signaline SL-UCB |
| Dimensions: | 94mm x 94mm x 54mm |
| IP rating: |
IP66 |
| Operating temperature: |
-35°C to +120°C |
| Mounting: | Wall |
| Material: | Polycarbonate enclosure with non-ageing polyurethane seal |
| Colour: | Grey (RAL 7035) |
| Weight: | 0.1kg |
