Signaline UL/FM 105°C Fixed Temperature Linear Heat Detector (Red PVC Sheath) (50m) (SL-FT-105)
SKU
SL-FT-105
£290.94
£242.45
Signaline UL/FM 105°C Fixed Temperature Linear Heat Detector (Red PVC Sheath) (50m) (SL-FT-105)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Signaline UL/FM 105°C Fixed Temperature Linear Heat Detector (Red PVC Sheath) (50m) (SL-FT-105)

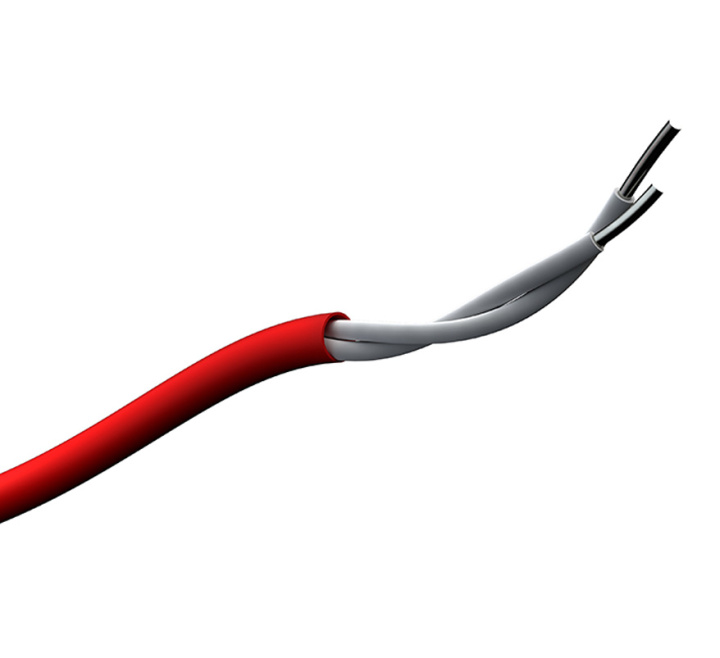

The Signaline SL-FT-105 Fixed Temperature Linear Heat Detector detects a build up of heat anywhere along its length. When any point along the length of the cable reaches a temperature of 105°C, an alarm is initiated. Red PVC outer sheath.
Key Features of the SL-FT-105 |
|---|
|
> Alarm Temperature: 105°C
> Outer Sheath: Red PVC > Suitable for Hazardous area and Safe area > Approvals: UL, cUL, FM |
| Brand | Signaline |
|---|---|
| Manufacturer Part No. | SL-FT-105 |
Write Your Own Review
FAQ’s for Signaline UL/FM 105°C Fixed Temperature Linear Heat Detector (Red PVC Sheath) (50m) (SL-FT-105)
No questions yet. Be the first to ask the question!
Product Specification for Signaline UL/FM 105°C Fixed Temperature Linear Heat Detector (Red PVC Sheath) (50m) (SL-FT-105)
| Model: |
Signaline FT-105 |
| Alarm temperature: | 105°C (220°F) |
| Max ambient temp.: | 85°C (185°F) |
| Conductor resistance: | 0.1Ω/M or 0.029Ω/FT @20°C |
| Max voltage: | 42Vdc or 30Vac |
| Dielectric withstand (UL): | 500Vdc |
| Tensile strength: | 1700 N/mm² |
| Minimum bend radius: | 75mm |
| Overall diameter: | 3.5mm |
| Outer sheath material: | PVC, Colour White |
| Approvals: | FM, UL, cUL |
| Weight: | 13kg/500m |
