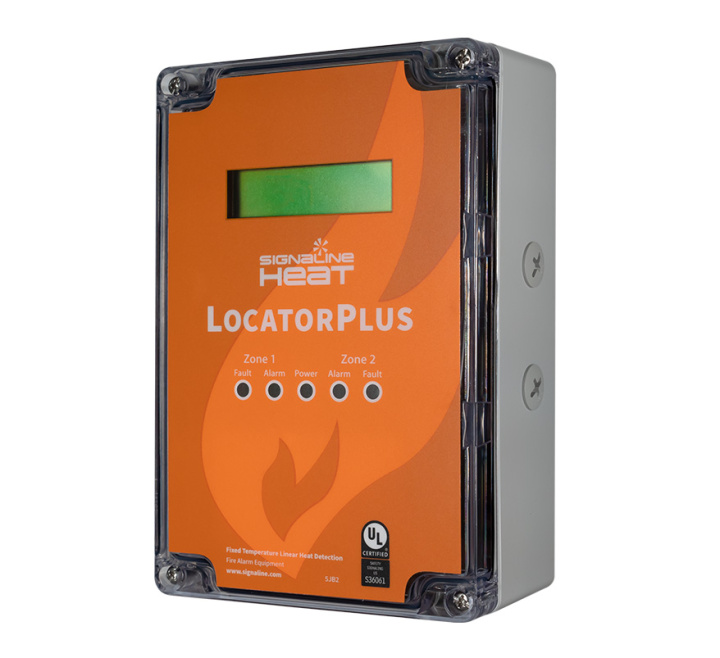

Signaline FT LocatorPlus Linear Heat Detector Controller (SLP-001)
SKU
SLP-001
£1,017.79 £848.16
Signaline FT LocatorPlus Linear Heat Detector Controller (SLP-001)
Product Details for Signaline FT LocatorPlus Linear Heat Detector Controller (SLP-001)
The Signaline SLP-001 LocatorPlus is a controller and alarm locator for the Signaline FT and FT-R ranges of linear heat detectors.
Housed in an IP66 enclosure it is capable of monitoring 2 separate zones of Signaline FT / FT-R, with up to 3km of cable per zone. Displays exact alarm location of any overheat along either zone of cable.
Compatible with either conventional or addressable fire systems via the alarm relay contacts and offers further connectivity via the MODBUS output.
The Signaline LocatorPlus also offers two operating functions; Independent or Interlocking mode. When set to Independent, if either zone of cable alarms, this is immediately reported via the relays to the Control Panel. When set to Interlocking mode, it will wait for both lines of cable to be in alarm before triggering the relays.
UL approved and may be integrated with a suitable barrier when linear heat detection is to be used within a hazardous area.
Key Features of the SLP-001 |
|---|
| > Compatible with Signaline FT, Signaline FT-R > IP65 rated > Independent or interlocking modes > Monitors 2 zones of up to 3000m each |
| Brand | Signaline |
|---|---|
| Manufacturer Part No. | SLP-001 |
Write Your Own Review
FAQ’s for Signaline FT LocatorPlus Linear Heat Detector Controller (SLP-001)
No questions yet. Be the first to ask the question!
Product Specification for Signaline FT LocatorPlus Linear Heat Detector Controller (SLP-001)
| Model: | SLP-001 Signaline LocatorPlus Controller |
| Dimensions: | W:120mm x H:180mm x D:60.5mm |
| IP rating: | IP65 |
| Operating temperature: | -20oC to +50oC |
| Finish: | Light grey with clear lid |
| Display: | 2 line, 16 character backlit display showing zone status |
| Approvals: | UL864 10th ed. |
| Operating voltage: | 12 - 36 Vdc |
| Operating current: | <40mA, <15mA |
| Terminal blocks: | Spacing 5mm Rising Clamp |
| Rating: | 16A |
| Wire size: | 0.08mm2 (28 AWG) to 4mm2 (11 AWG) |
| Supervised circuits: | Power, Input zone 1 & Input zone 2 |
| Inputs: | Up to 2 zones of Signaine FT or FT-R Linear Heat Detection |
| Zone length: | 1 - 3000m (10,000 ft) |
| End of line resistor: | 1kohm (included) |
| Short circuit current: | 0.5mA |
| Max. voltage: | 5V |
| Ground fault impedance: | 0 ohms |
| Communications: | 2-wire RS-485 Modbus RTU (field wiring limited to same room to comply with UL listing) |
| Sounder: | 2.4kHz 92dBa @ 10cm Buzzer |
| Alarm: | 2x Form C volt-free relay contacts (resistive, common) |
| Max V: | 30 Vac or 42.4 Vdc |
| Max current: | 2A Max. Switching Power, 60W, 62.5VA |
| Fault: | 2 x Optoisolated phototransistor output (resistive, common) |
| Max V: | 35 Vdc |
| Max. current: | 80mA Max Power Dissipation 150mW |
