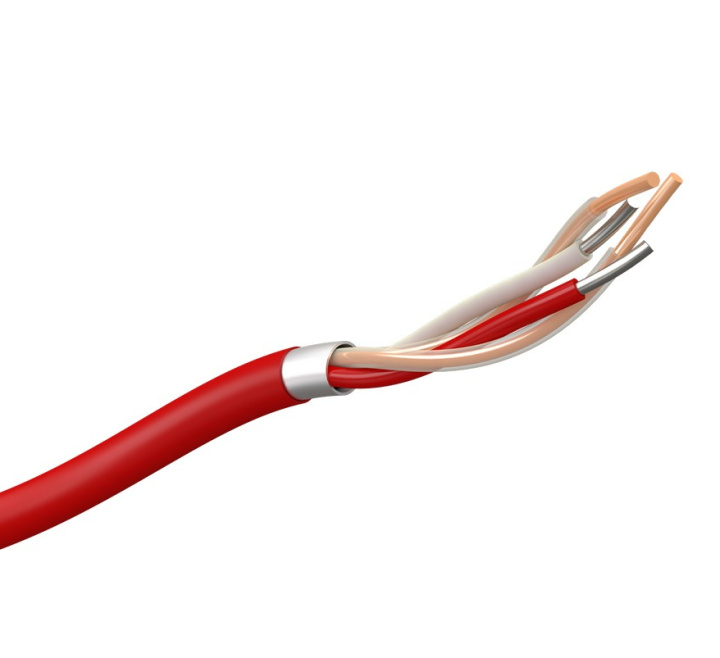

Signaline HD+ Programmable Linear Heat Detection Cable (50m) (SL-HDP-LHC)
SKU
SL-HDP-LHC
£425.24
£354.37
Signaline HD+ Programmable Linear Heat Detection Cable (50m) (SL-HDP-LHC)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Signaline HD+ Programmable Linear Heat Detection Cable (50m) (SL-HDP-LHC)
Signaline HD+ is a programmable Linear Heat Detector. It offers users the ability to set their own alarm temperatures as well as a pre-alarm feature and rate-of-rise alarm.
Signaline HD+ is approved to EN54 part 22 (VdS) Resettable Line Type Heat Detectors and UL 521 standards.
A major benefit of Signaline HD+ is that it can be fully reset. After any heat event, like a minor temperature spike or a small fire, you can quickly reset the system.
Note: Signaline HD+ must be used in conjunction with Signaline HD+ controller and EOL.
Key Features of the SL-HDP-LHC |
|---|
|
> Alarm temperature predetermined by chosen setting on Signaline HD+ Controller
> Hard PVC outer coating suitable for indoor and outdoor use > Not suitable for use in direct sunlight and/or exposed to harsh chemicals > Min. zone length 50m, Max. zone length 500m > EN54-22:2015+A1:2020 (Class A1I, A2I and BI), UL521 “Heat Detectors for Fire Protective Signalling Systems” |
| Brand | Signaline |
|---|---|
| Manufacturer Part No. | SL-HDP-LHC |
Write Your Own Review
FAQ’s for Signaline HD+ Programmable Linear Heat Detection Cable (50m) (SL-HDP-LHC)
No questions yet. Be the first to ask the question!
Product Specification for Signaline HD+ Programmable Linear Heat Detection Cable (50m) (SL-HDP-LHC)
| Model: | Signaline HD+ (SL-HDP-LHC) |
| Alarm class: | EN54-22:2015+A1:2020 (Class A1I, A2I and BI) UL521 “Heat Detectors for Fire Protective Signalling Systems” |
| Operating temperature: | -40°C to +125°C |
| Environmental group: | II |
| Max. zone length: | 500m / 1640ft (all alarm settings) |
| Min. zone length: | 50m / 164ft (Class A1l/A2l and 54°C alarm settings) 30m/100ft (all other alarm settings) |
| Conductor resistance: | White core resistance per mtr ; Approx 17Ω/m Red core resistance per mtr; Approx 3.3Ω/m Clear core resistance per mtr (each); Approx 0.1Ω/m |
| Min. bend radius: | 60mm (2.36 in) |
| Overall diameter: | 4.83mm |
| Weight: | 25.6g per m |
| Construction: | Overall insulated, 4-core twisted with 100% coverage foil-shield and shield dump wire |
| Colour: | Red |
| Recommending fixing: | Signaline Q Clip (stainless steel fixing required for EN54 compliance) |
| Note: Signaline HD+ must be used in conjunction with Signaline HD+ controller and EOL | |
