Signaline FT-EN 78°C Non-Resettable Linear Heat Detection Cable (50m) (SL-FT-78-EN)
SKU
SL-FT-78-EN
£269.88
£224.90
Signaline FT-EN 78°C Non-Resettable Linear Heat Detection Cable (50m) (SL-FT-78-EN)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Signaline FT-EN 78°C Non-Resettable Linear Heat Detection Cable (50m) (SL-FT-78-EN)

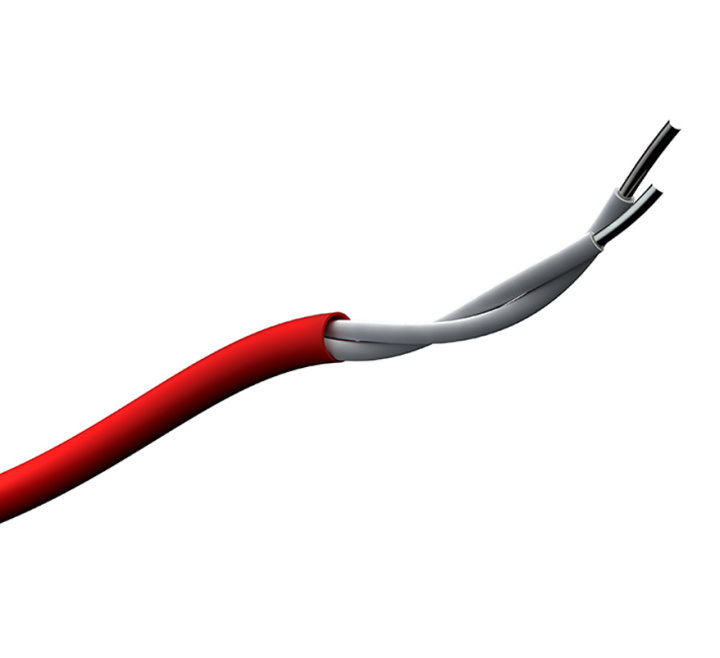

The Signaline SL-FT-78-EN Line Type Heat Detector (Signaline FT-EN) can detect a build-up of heat anywhere along its length. When any point along the length of the cable reaches a predetermined temperature an alarm is initiated.
The cable outer coating is made from a UV and chemical-resistant compound making the cable suitable for even the harshest of environments. Signaline FT-78-EN and Signaline FT-88-EN are approved for environmental group III – the highest environmental classification.
Signaline FT-EN is approved by UL to EN54 part 28 as a non-resettable line type heat detector. It is low smoke zero halogen and is also available in 88°C alarm temperature.
Key Features of the SL-FT-78-EN |
|---|
|
> Fixed 78°C alarm temperature
> No false alarms > Up to 1,000m per zone > EN54-28:2016 Approved |
| Brand | Signaline |
|---|---|
| Manufacturer Part No. | SL-FT-78-EN |
Write Your Own Review
FAQ’s for Signaline FT-EN 78°C Non-Resettable Linear Heat Detection Cable (50m) (SL-FT-78-EN)
No questions yet. Be the first to ask the question!
Product Specification for Signaline FT-EN 78°C Non-Resettable Linear Heat Detection Cable (50m) (SL-FT-78-EN)
| Model | Signaline FT-78-EN |
| Max reel length | 500m (sold in 50m increments, MOQ = 50m) |
| Alarm temperature | 78°C (155°F) |
| Max ambient temp. | 45°C (113°F) |
| Min. ambient temp | -40°C (-40°F) |
| EN54-28 performance | T078-V10-A045 |
| Environmental group | III |
| Conductor resistance | 1.25Ω/M per core |
| Max voltage | 74Vdc or 49Vac |
| Humidity | 0% to 98% RH |
| Insulation | 1kV tested |
| Tensile strength | 1700 N/mm² |
| Minimum bend radius | 100mm |
| Overall diameter | 5.72mm |
| Weight | 16kg/500M |
| Outer sheath | UV & chemical resistant sheath (red) |
| Features | Low-Smoke Zero Halogen (LSZH), UV Stable, Oil Resistant, Flame Retardant |
| Colour | Red |
| Approvals | EN54-28:2016, UL File no.: S24913, CE, ROHS |
