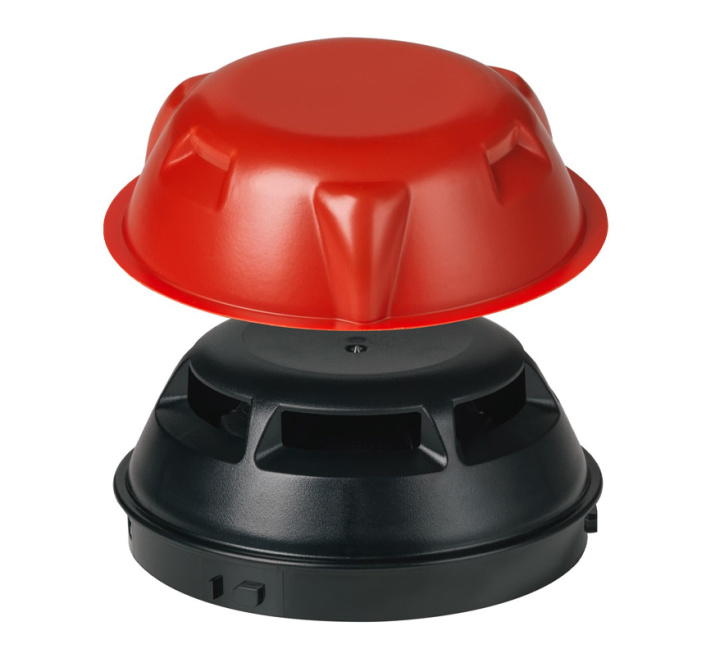

Siemens OP360-B Cerberus 360 Optical Smoke Detector (Black) (S54310-F101-A2)
SKU
S54310-F101-A2
£39.34 £32.78
Siemens OP360-B Cerberus 360 Optical Smoke Detector (Black) (S54310-F101-A2)
Product Details for Siemens OP360-B Cerberus 360 Optical Smoke Detector (Black) (S54310-F101-A2)
The Siemens OP360-B is an addressable optical smoke detector in a jet black (RAL9005) case. Designed for the detection of smoke-generating flaming and smoldering fires.
Works according to the scattered-light principle with an optical forward scattering sensor.
The base must be ordered separately.
Key Features of the S54310-F101-A2 |
|---|
| > Jet black RAL9005 colour > Functions according to the scattered light principle with one sensor, optical forward scattering > Opto-electronic measuring chamber which obstructs disruptive extraneous light but provides excellent detection of smoke particles > Resistant to environmental and interfering influences such as dust, fibers, insects, moisture, extreme temperatures, electromagnetic interference, corrosive vapors, vibration > Shock resistant, protection against sabotage > Protected electronics, high-quality components > Integrated line separator: The defective part on the detector line is located by the fire control panel and isolated between two C-NET devices. > Integrated alarm indicator (AI), located centrally, 360° visibility > Up to 2 external alarm indicators type FDAI91/FDAI92/FDAI93 can be connected per detector > Signal processing with detection algorithms > Address automatically issued during commissioning > Same detector base can be used for every detector type, for surface-mounted and recess-mounted supply lines |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | OP360-B |
| Product Range / Series | Cerberus 360 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Colour | Black |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens OP360-B Cerberus 360 Optical Smoke Detector (Black) (S54310-F101-A2)
No questions yet. Be the first to ask the question!
Product Specification for Siemens OP360-B Cerberus 360 Optical Smoke Detector (Black) (S54310-F101-A2)
| Standard | EN 54-7 , EN 54-17 |
| Protection category | IP40; IP42 with detector base seal |
| Operating voltage | DC 12…33 V |
| Operating temperature | -10…55 °C |
| Storage temperature | -30...+70 °C |
| Quiescent current | ~220 μA |
| Ext. alarm indicator | 2 |
| System compatibility | C-NET -> FC360 |
| Communication protocol | C-NET |
| Relative humidity | ≤95 % rel. |
| Permissible air speed | 5 m/s |
| Dimensions (W x H) | 105 x 45 mm |
| Color | Jet black, ~RAL 9005 |
