Siemens OH720-B Cerberus PRO Multi-Sensor Smoke Detector (Black) (S54310-F2-A2)
SKU
S54310-F2-A2
£66.05
£55.04
Siemens OH720-B Cerberus PRO Multi-Sensor Smoke Detector (Black) (S54310-F2-A2)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens OH720-B Cerberus PRO Multi-Sensor Smoke Detector (Black) (S54310-F2-A2)

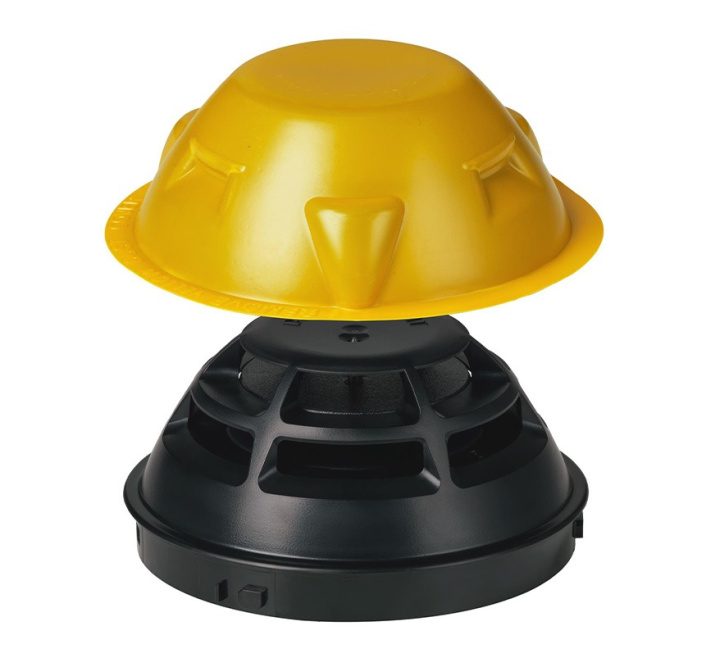

Siemens OH720 Multi-Sensor Jet Black Detector c/w Dustcap (Requires Base) for the detection of flaming fires caused by the combustion of liquid and solid matters, as well as smouldering fires. For reliable fire detection in environments with deceptive phenomena.
Works according to the scattered-light principle with an optical forward scattering sensor. An additional heat sensor increases the fire detector’s immunity to deceptive phenomena. Selectable detection behaviour by different parameter sets. Immunity against transient false alarm causes.
The base must be ordered separately.
Key Features of the S54310-F2-A2 |
|---|
|
> Jet black, RAL9005
> Point detector > Detector dust cap to protect the point detector during the construction phase > Functions according to the scattered light principle with one sensor, optical forward scattering > Opto-electronic measuring chamber which obstructs disruptive extraneous light but provides excellent detection of smoke particles > Additional heat sensor increases the point detector's immunity to deceptive phenomena > Selectable detection behaviour thanks to two parameter sets – Parameter set 1: 'Robust', Parameter set 2: 'Sensitive' > Immunity to false alarms > Detects flaming fires of solid and liquid substances as well as of smouldering fires > Reliable fire detection in an environment with deceptive phenomena |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | OH720-B |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | Black |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens OH720-B Cerberus PRO Multi-Sensor Smoke Detector (Black) (S54310-F2-A2)
No questions yet. Be the first to ask the question!
Product Specification for Siemens OH720-B Cerberus PRO Multi-Sensor Smoke Detector (Black) (S54310-F2-A2)
| Product: | Siemens Multi Sensor Fire Detector c/2 dustcap, requires base |
| Product code: | S54310-F2-A1 |
| Operating voltage: | DC12 - 33V |
| Standard: | CEA 4021 , EN 54-7 , EN 54-17 |
| Operating temperature: |
-10 to +55 °C |
| Protection category: | IP40; IP42 with detector base seal |
| Storage temperature: |
-30 to +70 °C |
| Relative humidity: | ≤96 % rel. |
| Colour: |
Jet Black RAL 9005 |
| Quiescent current: | ~230 μA |
| Communication protocol: | C-NET |
| System compatibility: | C-NET -> FS720 |
| Permissible air speed: | 5 m/s |
| Ext. alarm indicator: | 2 |
