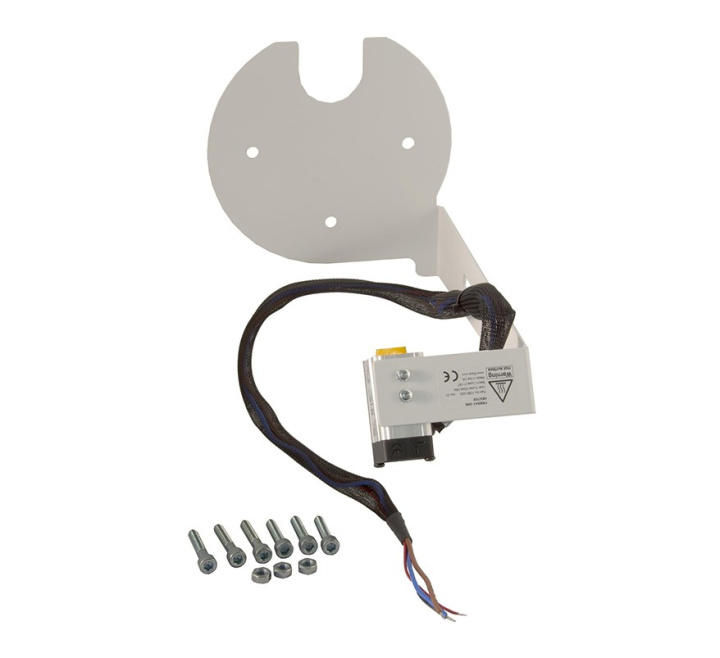

Siemens FDLH242 Beam Detector Heating Unit (Requires 24v Supply) (S54331-B20-A1)
SKU
S54331-B20-A1
£492.50
£410.42
Siemens FDLH242 Beam Detector Heating Unit (Requires 24v Supply) (S54331-B20-A1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDLH242 Beam Detector Heating Unit (Requires 24v Supply) (S54331-B20-A1)
Siemens FDLH242 Detector heating unit requires 24v supply (S54331-B20-A1)
For applications where there is a risk of moisture condensation or icing of the detector front.
Connections: 4 lines (2 for the heater, 2 for the fan).
Start-up time until maximum temperature is reached: 30 min
Average temperature rise due to heating of the lens above ambient temperature:: +10°C
Recommended fuse value: 2A
Key Features of the S54331-B20-A1 |
|---|
|
> Detector Heating Unit
> 24V supply required > Model FDLH242 |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDLH242 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDLH242 Beam Detector Heating Unit (Requires 24v Supply) (S54331-B20-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDLH242 Beam Detector Heating Unit (Requires 24v Supply) (S54331-B20-A1)
| Operating voltage | 24 V AC/DC |
| Operating temperature | -10°C to +45 °C |
| Dimensions (W x H x D) | 200 x 142 x 135 mm |
