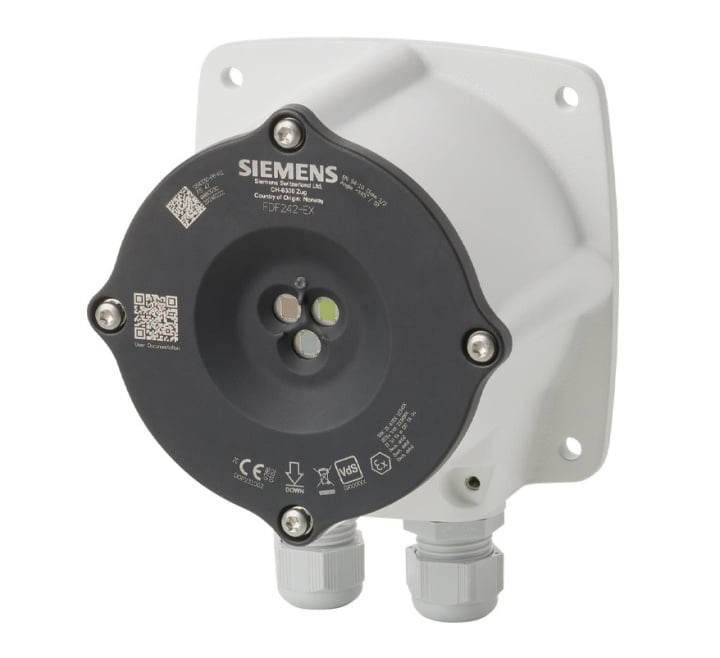

Siemens FDF242-EX Cerberus PRO Addressable 'Ex' Infrared Flame Detector (S54330-F6-A1)
SKU
S54330-F6-A1
£2,007.55
£1,672.96
Siemens FDF242-EX Cerberus PRO Addressable 'Ex' Infrared Flame Detector (S54330-F6-A1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDF242-EX Cerberus PRO Addressable 'Ex' Infrared Flame Detector (S54330-F6-A1)
The Siemens FDF242-EX flame detector with three pyroelectric sensors uses the principle of infrared detection for effective fire detection. Each of the three pyroelectric sensors has been designed to analyze a specific wavelength in the infrared spectrum.
Due to its durable housing, the detector is suitable for operation in challenging environments. Suitable in various applications including the automotive industry, food and beverage sector, EV charging points, chemical production facilities, as well as military and civilian aircraft hangars.
The FDF242-EX can be used in zones 0, 1, and 2.
Key Features of the S54330-F6-A1 |
|---|
|
> Three pyroelectric sensors in the infrared spectrum for reliable fire detection
> Robust design for challenging ambient conditions > Accurate differentiation of deceptive phenomena > Meets the requirements of the highest fire sensitivity class 1 in accordance with EN 54-10 > Parameters are set on Siemens fire control panel > For indoor and outdoor applications > Easy mounting and installation > Supports cloud-based evaluation of alarms and danger levels > High immunity to deceptive phenomena thanks to intelligent algorithm and outstanding sensory > Digital signal processing facilitates fast and accurate fire detection > Robust aluminum housing for harsh industrial applications, providing protection against electromagnetic interference, moisture, and corrosion > Integrated alarm indicator > Connection for one external alarm indicator > Very low current consumption > Passed VdS sulphur dioxide (SO2) corrosion test (endurance test) |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDF242-EX |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Sensor Type | Infrared (IR) |
| Detectable Medium | Flame |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDF242-EX Cerberus PRO Addressable 'Ex' Infrared Flame Detector (S54330-F6-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDF242-EX Cerberus PRO Addressable 'Ex' Infrared Flame Detector (S54330-F6-A1)
| Standard | BS5839-2 , EN 54-10 |
| Operating voltage | FDnet-Ex/C-NET-Ex DC 28 V |
| Protection category | IP66/IP67 |
| Operating current | 750 μA |
| Relative humidity | ≤96% rel. |
| Operating temperature | -40°C…+70 °C |
| Cable capacity | 0,2...1,5 mm² |
| Ex-classification | Ex ia IIC T4 Ga, Ta = -40...70 °C |
| Communication protocol | FDnet-Ex , C-NET-Ex |
| Dimensions (W x H x D) | 120 x 122 x 83 mm |
| Ext. alarm indicator | FDAI92-Ex / FDAI93-Ex |
| Color | RAL 9003 signal white |
| Terminals | 0,2...1,5 mm² |
