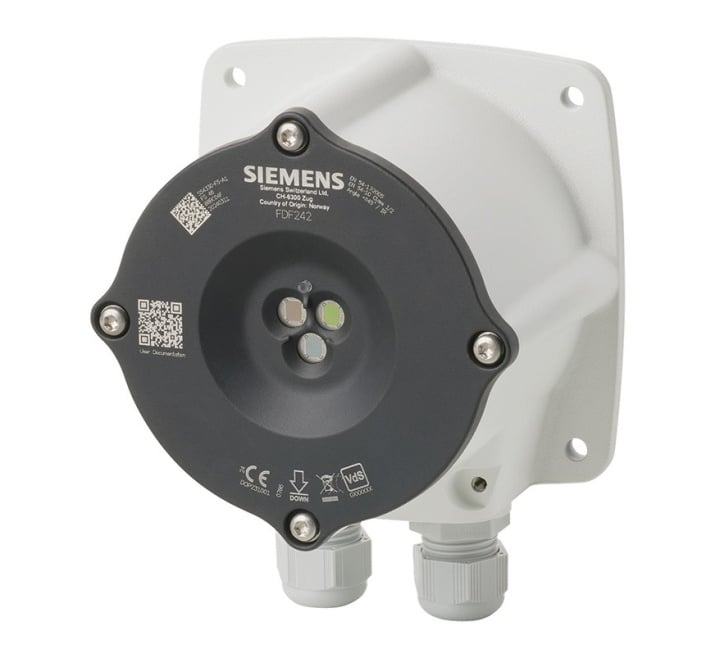

Siemens FDF242 Cerberus PRO Addressable Flame Detector (S54330-F5-A1)
SKU
S54330-F5-A1
£1,287.48
£1,072.90
Siemens FDF242 Cerberus PRO Addressable Flame Detector (S54330-F5-A1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDF242 Cerberus PRO Addressable Flame Detector (S54330-F5-A1)
The Siemens FDF242 flame detector with three pyroelectric sensors uses the principle of infrared detection for effective fire detection. Each of the three pyroelectric sensors has been designed to analyze a specific wavelength in the infrared spectrum.
Due to its durable housing, the detector is suitable for operation in challenging environments.
Suitable in various applications including the automotive industry, food and beverage sector, EV charging points, chemical production facilities, as well as military and civilian aircraft hangars.
Key Features of the S54330-F5-A1 |
|---|
|
> Three pyroelectric sensors in the infrared spectrum for reliable fire detection
> Robust design for challenging ambient conditions > Accurate differentiation of deceptive phenomena > Meets the requirements of the highest fire sensitivity class 1 in accordance with EN 54-10 > Parameters are set on Siemens fire control panel > For indoor and outdoor applications |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDF242 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Sensor Type | Triple Infrared (IR³) |
| Detectable Medium | Flame |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDF242 Cerberus PRO Addressable Flame Detector (S54330-F5-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDF242 Cerberus PRO Addressable Flame Detector (S54330-F5-A1)
| Standard | EN 54-10 , EN 54-17 |
| Operating voltage | FDnet/C-NET DC 12…33 V |
| Protection category | IP66/IP67 |
| Operating current | 750 μA |
| Relative humidity | ≤96% rel. |
| Operating temperature | -40°C…+70 °C |
| Cable capacity | 0,2...1,5 mm² |
| Communication protocol | FDnet , C-NET |
| System compatibility | Sinteso / Cerberus |
| Dimensions (W x H x D) | 120 x 122 x 83 mm |
| Ext. alarm indicator | FDAI91 / FDAI92 / FDAI93 |
| Color | RAL 9003 signal white |
| Terminals | 0,2...1,5 mm² |
