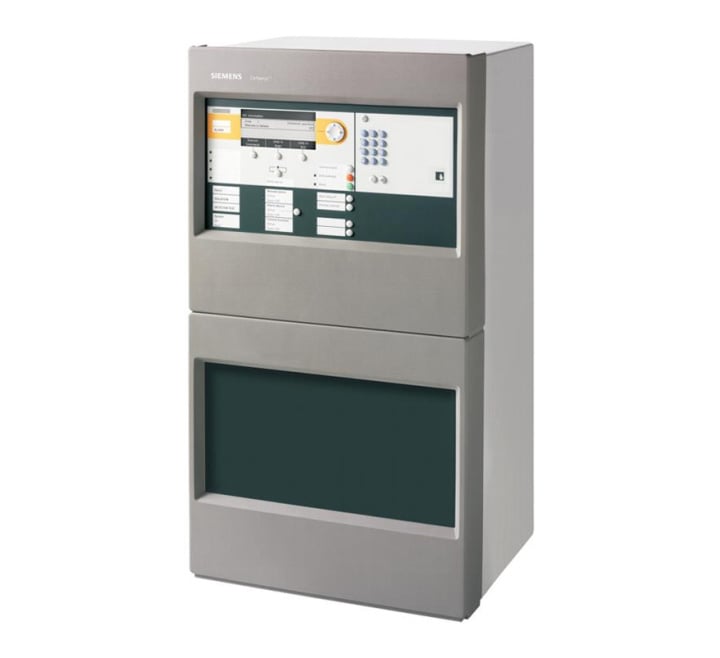

Siemens FC726-ZA-P Cerberus PRO 4 Loop Modular Fire Panel c/w 5 Card Cage Slots & 1.5A Loop Module (No Zonal LEDs) (S54433-C116-A1)
- Buy 10 for £4,130.63 £3,442.19 each and save 2%
Product Details for Siemens FC726-ZA-P Cerberus PRO 4 Loop Modular Fire Panel c/w 5 Card Cage Slots & 1.5A Loop Module (No Zonal LEDs) (S54433-C116-A1)
The Siemens Cerberus PRO FC726-ZA-P (4-loop with 1.5 A line driver, expandable to 28 loops) is a modular fire control panel with an integrated operating unit that can process signals from Cerberus PRO devices of up to 1512 addresses.
A card cage in the basic fire control panel equipment is used for installation of additional line cards (C-NET) or I/O cards. A mix of up to 5 cards max. is possible. Line and I/O cards can be exchanged without removing power from control panel.
The fire control panel can be used as a stand-alone version or networked. It can be programmed with a user-friendly Cerberus-Engineering-Tool to create a system with great versatility. Up to 32 fire control panels and fire terminals can be connected in a single cluster (C-WEB/SAFEDLINK network), or up to 16 panels when the cluster is connected to a danger management system. Using a fiber-optic backbone (C-WEB/LAN) up to 14 of these clusters with up to 16 panels each can be networked.
This topology enables the construction of an EN 54-conform network with up to 64 fire control panels and fire terminals.
All detector lines are monitored for ground faults.
Adaptation of the user text directly on the terminal or with the Cerberus-Engineering-Tool. Up to 2000 events can be stored according to various criteria. Automatic summer/winter time change.
Detection and automatic read-in (auto configuration) of all C-NET devices, providing immediate simple operation.
Stored data can be uploaded via Cerberus-Remote access.
The FC726-ZA-P is ideally suited for very large and complex buildings, e.g. Office buildings, university campuses, etc. The FC726-ZA with flexible cross-linking possibilities can also be used for extensive systems.
The expansion and accessories must be ordered separately.
Key Features of the S54433-C116-A1 |
|---|
|
> Fire Control Panel, modular
> Comes with 1.5A line driver, expandable to 28 loops > 5 Card cage slots > Line and I/O cards can be exchanged without removing power from the panel > Up to 32 fire control panels can be connected in a single cluster or up to 16 panels when the cluster is connected to a danger management system > No zonal LEDs > Space for 2 x 12V 45Ah batteries > Processes signals from up to 1512 addresses > May be used as a stand-alone unit or networked > All detector lines are monitored for ground faults > Programmable via Cerberus-Engineering-Tool > Auto configuration of all C-NET devices > Stored data can be uploaded via Cerberus-Remote access > Suited to very large and complex buildings e.g. industrial plants, office complexes, university campuses etc > Expansions and accessories must be ordered separately |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FC726-ZA-P |
| Product Series | Cerberus PRO |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 4 |
| Max No. of Loops Possible | 28 |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Grey |
| Warranty | 5 Years |
FAQ’s for Siemens FC726-ZA-P Cerberus PRO 4 Loop Modular Fire Panel c/w 5 Card Cage Slots & 1.5A Loop Module (No Zonal LEDs) (S54433-C116-A1)
Product Specification for Siemens FC726-ZA-P Cerberus PRO 4 Loop Modular Fire Panel c/w 5 Card Cage Slots & 1.5A Loop Module (No Zonal LEDs) (S54433-C116-A1)
| Product: | Siemens Fire Control Panel, Modular, 5 card cage slots, no zonal LEDs, comes with 1.5A module |
| Product code: | S54433-C116-A1 |
| Standard: | EN54-2, EN54-4 |
| Dimensions: Without cover cap: With cover cap: |
W:430mm x H:796mm x D:260mm W:430mm x H:796mm x D:283mm |
| Detector compatibility: | Cerberus™ PRO FD720 |
| Operating voltage: | 21 - 28.4V |
| No. of addresses: | 1512 |
| No. of detector lines: | Integrated lines:
|
| Battery capacity: | Max. 2 x 12V, 45 Ah |
| Programmable input/output: | Max. 60 (12 per card) |
| Relay outputs: | 1 x RT alarm 1 x RT fault |
| Power consumption: | Alarm power: 6.288W, Quiet power: 3.888W |
| Supervised output: | 1 x RT alarm 1 x RT fault 2 x Horn |
| Power supply: | 150W |
| Operating current: | 5000 mA |
| Mains voltage: |
AC 115 / 230 V +10/-15 %
|
| Bypass time for emergency power supply: | 72h |
| Plug-in position: | 2 -> for serial interfaces RS232, RS485 , 2 -> for network modules , 1 -> for loop extension (C-NET, 5 -> for line or I/O cards (card cage) |
| Relative humidity: | ≤95 % rel. |
| Operating temperature: | -8 to 42 °C |
| Storage temperature: | -20 to +60 °C |
| Protection category: | IP30 |
| Colour housing/cover: | Light Grey RAL 7035 / Grey RAL 050 00 00 |
| Weight: | 25.25 kg |
