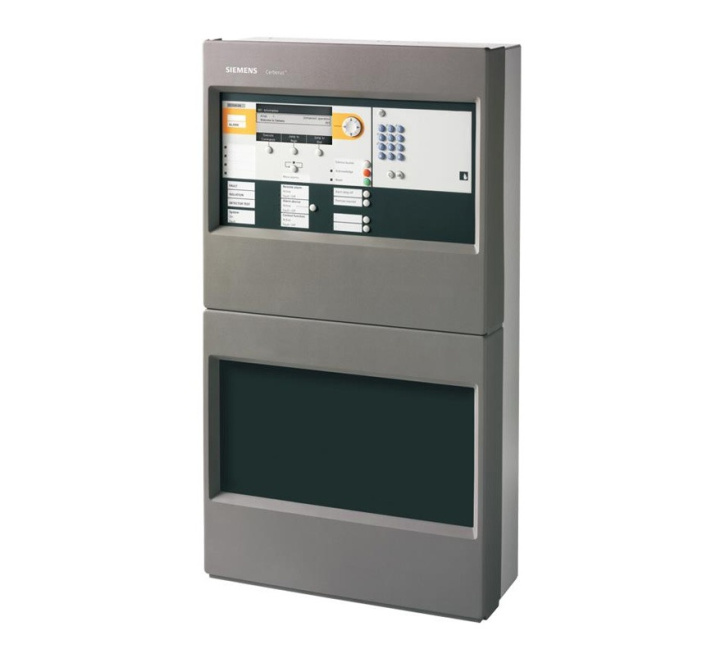

Siemens FC723-ZA-P Cerberus PRO 2 Loop Modular Fire Panel c/w 2 Card Cage Slots & 1.5A Power Loop Module (No Zonal LEDs) (S54433-C114-A1)
- Buy 10 for £3,332.28 £2,776.90 each and save 2%
Product Details for Siemens FC723-ZA-P Cerberus PRO 2 Loop Modular Fire Panel c/w 2 Card Cage Slots & 1.5A Power Loop Module (No Zonal LEDs) (S54433-C114-A1)
The Siemens Cerberus PRO FC723-ZA (2-loop with 1.5 A linedriver, expandable to 12 loops) is a modular fire control panel with an integrated operating unit that can process signals from Cerberus PRO devices of up to 756 addresses. A card cage in the basic fire control panel equipment is used for installation of additional line cards (C-NET) or I/O cards. A mix of up to 2 cards max. is possible. Line and I/O cards can be exchanged without removing power from control panel.
The fire control panel can be used as a stand-alone version or networked. It can be programmed with a user-friendly Cerberus-Engineering-Tool to create a system with great versatility. Up to 32 fire control panels and fire terminals can be connected in a single cluster (C-WEB/SAFEDLINK network), or up to 16 panels when the cluster is connected to a danger management system. Using a fiber-optic backbone (C-WEB/LAN) up to 14 of these clusters with up to 16 panels each can be networked. This topology enables the construction of an EN 54-conform network with up to 64 fire control panels and fire terminals.
All detector lines are monitored for ground faults.
Adaptation of the user text directly on the terminal or with the Cerberus-Engineering-Tool. Up to 13'000 events can be stored according to various criteria. Automatic summer/winter time change.
Detection and automatic read-in (auto configuration) of all C-NET devices, providing immediate simple operation.
Stored data can be uploaded via Cerberus-Remote access.
The FC723-ZA is designed for modernizing existing installations with SynoLOOP devices and is ideally suited for large and complex buildings, e.g. Office buildings, university campuses, etc. The FC723-ZA with flexible cross-linking possibilities can also be used for extensive systems.
The expansion and accessories must be ordered separately.
Key Features of the S54433-C114-A1 |
|---|
|
> Fire control panel for max. 756 addresses
> Can be used as a standalone version or networked with up to 64 stations, such as control panels and terminals > Redundant network node with degraded mode operation according to EN 54 > Option to connect to Siemens 'Cloud for Buildings' > Emergency power supply for emergency operating time of up to 72 hours > Recognition, automatic read-in and immediate operational readiness of all C-NET devices with auto-configuration > Flexible configuration of complex applications and controls > Configuration data can be uploaded/downloaded via remote access > Card cage for additional module bus cards (line and I/O cards) > Hot plug system: Module bus cards can be changed during operation > Extensions: Printer, key switches, LED indicators |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FC723-ZA-P |
| Alternative Product Codes | S54433-C114-A1 |
| Product Series | Cerberus PRO |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 2 |
| Max No. of Loops Possible | 12 |
| Protocol Compatibility | Siemens Cerberus |
| Warranty | 5 Years |
FAQ’s for Siemens FC723-ZA-P Cerberus PRO 2 Loop Modular Fire Panel c/w 2 Card Cage Slots & 1.5A Power Loop Module (No Zonal LEDs) (S54433-C114-A1)
Product Specification for Siemens FC723-ZA-P Cerberus PRO 2 Loop Modular Fire Panel c/w 2 Card Cage Slots & 1.5A Power Loop Module (No Zonal LEDs) (S54433-C114-A1)
| Detector compatibility | Cerberus PRO FD720 (C-NET) |
| Standard | EN 54-2 , EN 54-4 |
| Number of addresses | 756 |
| Number of detector lines | Integrated lines: C-NET loops: 2 With loop extension: 4 Extra lines: C-NET (4 loops per line card): Max. 8 SynoLOOP (4 loops per line card): Max. 8 |
| Programmable input/output | Max 24 (12 per I/O card) |
| Relay outputs | 1x RT alarm, 1x RT fault |
| Power consumption | Alarm power: 4.776 W, Quiet power: 3.096 W |
| Supervised output | 1x RT alarm , 1x RT fault , 2x Horn |
| Mains voltage | AC 115 / 230 V +10/-15 % |
| Dimensions (W x H x D) | 443 x 802 x 188 mm (with cover) - 430 x 796 x 165 mm (without cover) |
| Operating current | 5000 mA |
| Power supply | 150 W |
| Bypass time for emergency power supply | 72 h |
| Battery capacity | 2x 12 V, max. 25 Ah |
| Plug-in position | 2 -> for serial interfaces RS232, RS485 , 2 -> for network modules , 1 -> for loop extension (C-NET) , 2 -> for line or I/O cards (card cage) |
| Operating temperature | -8…42 °C |
| Storage temperature | -20…+60 °C |
| Relative humidity | ≤95 % rel. (no condensation) |
| Protection category | IP30 |
| Color housing/cover | Light grey, ~RAL 7035 / Gray, ~RAL 050 00 00 |
| Cabinet dimensions (W x H x D) | 443 x 802 x 188 mm |
