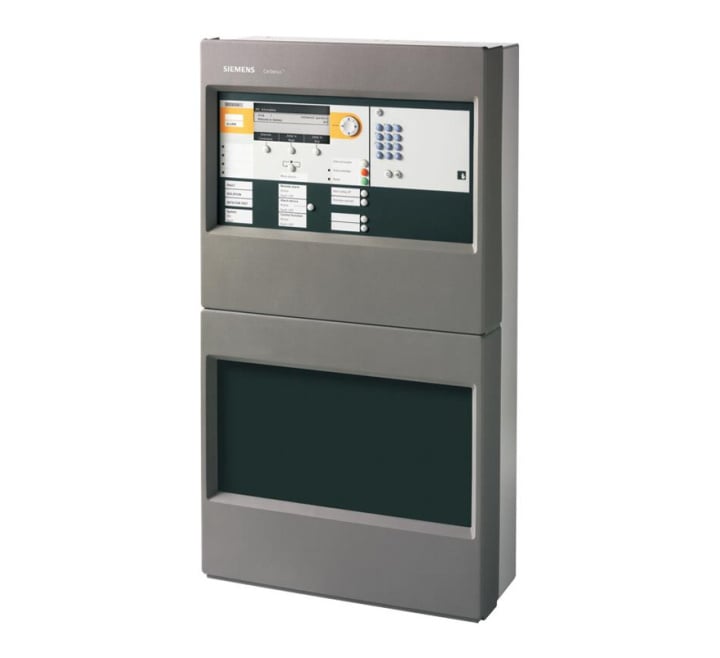

Siemens FC722-ZA-P Cerberus PRO 2 Loop Fire Panel in Comfort Housing c/w C-NET & 1.5A Power Loop Module (No Zonal LEDs) (S54433-C113-A3)
- Buy 10 for £1,667.94 £1,389.95 each and save 2%
Product Details for Siemens FC722-ZA-P Cerberus PRO 2 Loop Fire Panel in Comfort Housing c/w C-NET & 1.5A Power Loop Module (No Zonal LEDs) (S54433-C113-A3)
The Siemens FC722-ZA-P (2-loop with 1.5 A linedriver, expandable to 4) is a compact fire control panel with an integrated operating unit that can process signals from Cerberus PRO devices of up to 252 addresses.
The fire control panel can be used as a stand-alone version or networked. It can be programmed with a user-friendly Cerberus-Engineering-Tool to create a system with great versatility. Up to 32 fire control panels and fire terminals can be connected in a single cluster (C-WEB/SAFEDLINK network), or up to 16 panels when the cluster is connected to a danger management system. Using a fiber-optic backbone (C-WEB/LAN) up to 14 of these clusters with up to 16 panels each can be networked. This topology enables the construction of an EN 54-conform network with up to 64 fire control panels and fire terminals.
All detector lines are monitored for ground faults.
Adaptation of the user text directly on the terminal or with the Cerberus-Engineering-Tool. Up to 13'000 events can be stored according to various criteria.
Automatic summer/winter time change.
Detection and automatic read-in (auto configuration) of all C-NET devices, providing immediate simple operation.
Stored data can be uploaded via Cerberus-Remote access.
The FC722-ZA is ideally suited for medium-sized applications, e.g. in workshops, hotels, etc. or when networked as part of much larger applications. The FC722-ZA with flexible cross-linking possibilities can also be used for extensive systems.
The expansion and accessories must be ordered separately.
Key Features of the S54433-C113-A3 |
|---|
|
> Fire control panel for a maximum of 252 addresses
> Optional, integrated single-sector extinguishing > Can be used as a standalone version or networked with up to 64 stations, such as control panels and terminals > Redundant network node with degraded mode operation according to EN 54 > Option to connect to Siemens 'Cloud for Buildings' > Emergency power supply for emergency operating time of up to 72 hours > Recognition, automatic read-in and immediate operational readiness of all C-NET devices with auto-configuration > Flexible configuration of complex applications and controls > Configuration data can be uploaded/downloaded via remote access > Time and situation-dependent changeover of detector parameter sets > Extensions: Printer, key switches, LED indicators |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FC722-ZA-P |
| Product Series | Cerberus PRO |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 2 |
| Max No. of Loops Possible | 4 |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Grey |
| Warranty | 5 Years |
FAQ’s for Siemens FC722-ZA-P Cerberus PRO 2 Loop Fire Panel in Comfort Housing c/w C-NET & 1.5A Power Loop Module (No Zonal LEDs) (S54433-C113-A3)
Product Specification for Siemens FC722-ZA-P Cerberus PRO 2 Loop Fire Panel in Comfort Housing c/w C-NET & 1.5A Power Loop Module (No Zonal LEDs) (S54433-C113-A3)
| Detector compatibility | Cerberus PRO FD720 |
| Number of addresses | 252 |
| Number of detector lines | 2 (4) loops or 4 (8) stub lines |
| Programmable input/output | 8 |
| Relay outputs | 1x RT alarm , 1x RT fault |
| Power consumption | Alarm power: 4.32 W, Quiet power: 2.64 W |
| Supervised output | 1x RT alarm , 1x RT fault , 1x Horn |
| Mains voltage | AC 115 / 230 V +10/-15 % |
| Dimensions (W x H x D) | 443 x 802 x 188 mm (with cover) - 430 x 796 x 165 mm (without cover) |
| Operating current | 5000 mA |
| Power supply | 150 W |
| Bypass time for emergency power supply | 72 h |
| Battery capacity | 2x 12 V, max. 25 Ah |
| Plug-in position | 2 -> for serial interfaces RS232, RS485 , 2 -> for network modules , 1 -> for loop extension (C-NET) |
| Operating temperature | -8…42 °C |
| Storage temperature | -20...+60 °C |
| Relative humidity | ≤95 % rel. (no condensation) |
| Protection category | IP30 |
| Color housing/cover | Light grey, ~RAL 7035 / Gray, ~RAL 050 00 00 |
| Cabinet dimensions (W x H x D) | 443 x 802 x 188 mm |
