Siemens FC722-YZ-P Cerberus PRO 2 Loop Fire Panel c/w 1.5A Power Loop Module (c/w 24 Zone LEDs) (S54433-C113-A2)
- Buy 10 for £1,785.84 £1,488.20 each and save 2%
Product Details for Siemens FC722-YZ-P Cerberus PRO 2 Loop Fire Panel c/w 1.5A Power Loop Module (c/w 24 Zone LEDs) (S54433-C113-A2)

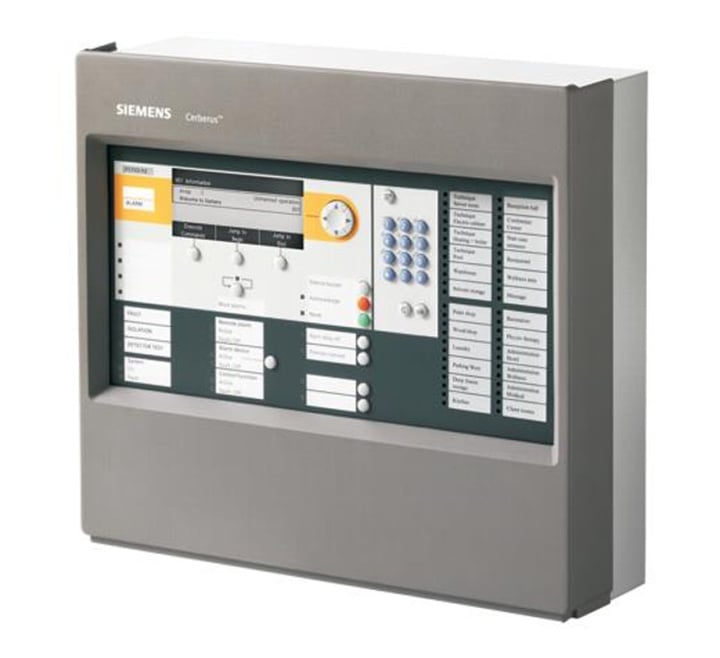

The Siemens Cerberus PRO FC722-YZ-P (2-loop with 1.5 A line driver, expandable to 4) is a compact fire control panel with an integrated operating unit that can process signals from Cerberus PRO devices of up to 252 addresses.
The fire control panel can be used as a stand-alone version or networked. It can be programmed with a user-friendly Cerberus-Engineering-Tool to create a system with great versatility. Up to 32 fire control panels and fire terminals can be connected in a single cluster (C-WEB/SAFEDLINK network), or up to 16 panels when the cluster is connected to a danger management system. Using a fiber-optic backbone (C-WEB/LAN) up to 14 of these clusters with up to 16 panels each can be networked.
This topology enables the construction of an EN 54-conform network with up to 64 fire control panels and fire terminals.
* All detector lines are monitored for ground faults.
* Adaptation of the user text directly on the terminal or with the Cerberus-Engineering-Tool.
* Up to 2000 events can be stored according to various criteria.
* Automatic summer/winter time change.
* Detection and automatic read-in (auto configuration) of all C-NET devices, providing immediate simple operation.
* Stored data can be uploaded via Cerberus-Remote access.
The FC722-YZ-P is ideally suited for medium-sized applications, e.g. in workshops, hotels, etc. or when networked as part of much larger applications. The FC722-ZZ with flexible cross-linking possibilities can also be used for extensive systems.
The expansion and accessories must be ordered separately.
Key Features of the S54433-C113-A2 |
|---|
|
> 2-loop Fire Control Panel, expandable to 4
> P 1.5A line driver > Standard housing > c/w 24 zonal LEDs > Space for 2 x 12Ah batteries > Processes signals from up to 252 addresses > May be used as a stand-alone unit or networked > Ethernet connection available at each station > Programmable via Cerberus-Engineering-Tool > Detector lines monitored for ground faults > Auto configuration of all C-NET devices > Stored data can be uploaded via Cerberus-Remote access > Suited to medium sized applications e.g. workshops, hotels or when networked as part of larger applications > Expansions and accessories must be ordered separately |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FC722-YZ-P |
| Product Series | Cerberus PRO |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 2 |
| Max No. of Loops Possible | 2 |
| Number of Zones | 24 |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Grey |
| Warranty | 5 Years |
FAQ’s for Siemens FC722-YZ-P Cerberus PRO 2 Loop Fire Panel c/w 1.5A Power Loop Module (c/w 24 Zone LEDs) (S54433-C113-A2)
Product Specification for Siemens FC722-YZ-P Cerberus PRO 2 Loop Fire Panel c/w 1.5A Power Loop Module (c/w 24 Zone LEDs) (S54433-C113-A2)
| Product: | Siemens 2-loop Fire Control Panel, 2 x 12Ah batteries, No zonal LEDs, Standard housing, c/w C-NET P1.5A |
| Product code: | S54433-C113-A1 |
| Dimensions: Without cover cap: With cover cap: |
W:430mm x H:398mm x D:160mm W:430mm x H:398mm x D:183mm |
| Detector compatibility: | Cerberus™ PRO FD720 |
| Operating voltage: | 20.5 - 28.6V |
| No. of addresses: | 504 |
| No. of detector lines: | Loops: 2 (4) Stub lines: 4 (8) |
| Battery capacity: | Max. 2 x 12V, 12 Ah |
| Programmable input/output: | 8 |
| Relay outputs: | 1 x RT alarm 1 x RT fault |
| Supervised output: | 1 x RT alarm 1 x RT fault 1 x Horn |
| Power supply: | 70W |
| Operating current: | 2500 mA |
| Mains voltage: |
AC 97-127 V / AC 196-253 V
|
| Bypass time for emergency power supply: | 72h |
| Plug-in position: | 2 -> for serial interfaces RS232, RS485 , 2 -> for network modules , 1 -> for loop extension (C-NET) |
| Relative humidity: | ≤95 % rel. (no condensation) |
| Operating temperature: | -8 to 42 °C |
| Storage temperature: | -20 to +60 °C |
| Protection category: | IP30 |
| Colour housing/cover: | Light Grey RAL 7035 / Grey RAL 050 00 00 |
| Weight: | 10.6 kg |
