Advanced Serial to Ethernet Interface (Moxa) (UP-017)
Product Details for Advanced Serial to Ethernet Interface (Moxa) (UP-017)

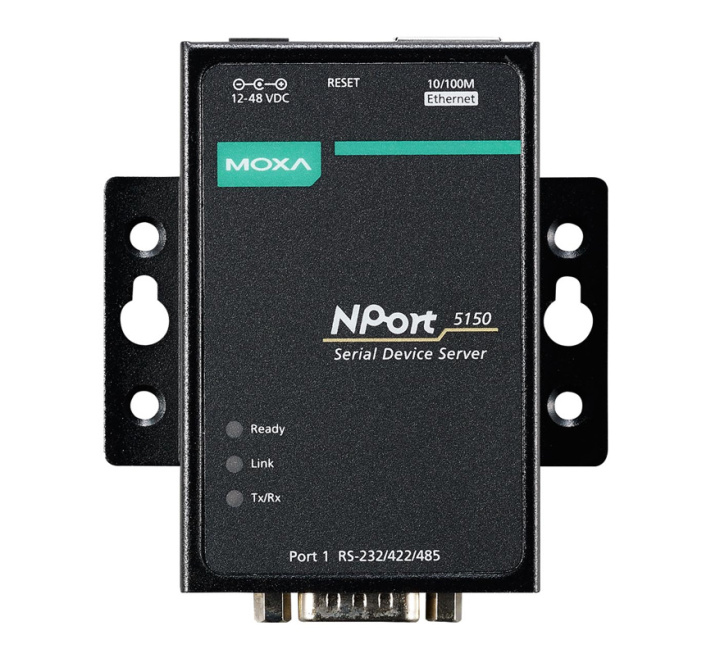

The Advanced UP-017 Serial to Ethernet Interface (Moxa-5150) with connection lead allows remote monitoring and interaction with the Lux Intelligent Emergency Lighting Test Panel via its local area network. Rather than networking panels across an installation, tag each one onto the site's internal network.
Allows any number of computers on the network to download test data. Enables access to the LuxIntelligent Cloud and associated mobile/desktop apps. Easily configured using standard WindowsTM tool. For security purposes, passwords can be set and access granted to known IP addresses only.
The device comes complete with the software tool for programming it and is compatible with WindowsTM 95/98/ME/NT/2000/XP/2003/Vista/2008/7/8/8.1. Works with LuxIntelligent logging and configuration tools. See datasheet for diagram of a typical Application.
Key Features of the UP-017 |
|---|
|
> Serial to ethernet converter
> Only requires a data connection to the closest local network hub > Monitors panels from anywhere across the installation > Small and easy to install > Allows full use of all LuxIntelligent monitoring features > Comes with software tool for programming > Windows compatible > Does away with the need to network groups of panels > Any number of computers on network can download test data > Allows password protection and known IP addresses only > Install into any panel > Runs from internal auxiliary power supply |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | UP-017 |
| Product Series | MxPro 5 |
| System Type | Addressable |
| Warranty | 3 Years |
FAQ’s for Advanced Serial to Ethernet Interface (Moxa) (UP-017)
Product Specification for Advanced Serial to Ethernet Interface (Moxa) (UP-017)
| Dimensions (box): |
52 x 80 x 22mm |
| Supply Voltage: | 12 - 48 V dc |
| Supply Current: | 106 mA @ 24 V |
| Serial data: | 38.4 Baud |
| Connector: | DB9 (male) |
| Ethernet | 10/100Mbps |
| Connector: | RJ45 (8 pin) |
| Temperature: | 0o to 55oC |
| Housing: | Metal |
| Weight: | 340g |
