SENSE-WARE Ultraviolet (UV) Flame Detector, Red Housing (UV-185/5CZ)

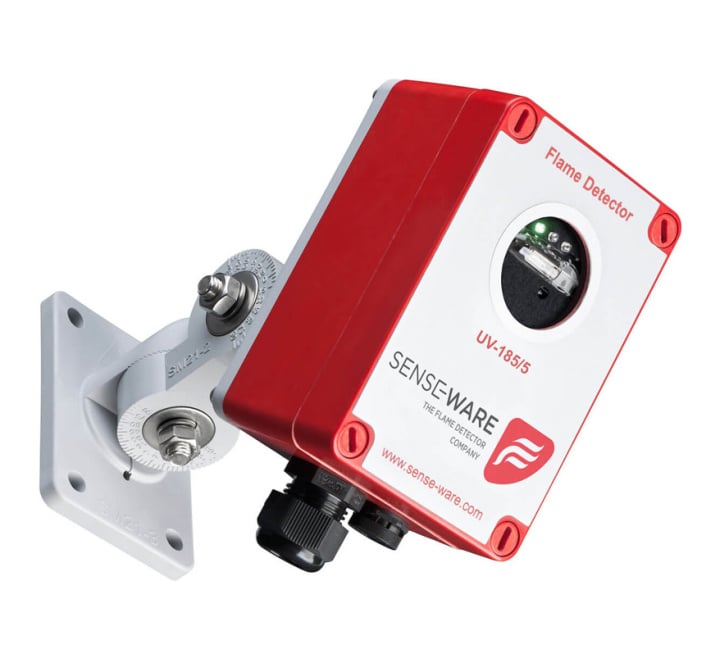

Please Note: This product does not include the swivel mounting bracket. The swivel bracket shown in the image is for illustrative purposes only and is sold separately.
Product Details for SENSE-WARE Ultraviolet (UV) Flame Detector, Red Housing (UV-185/5CZ)
The SENSE-WARE UV Flame Detector utilises a microprocessor for sophisticated electronic signal analysis. The ultraviolet flame detector is suitable for indoor and outdoor applications. Because of its non-corrosive housing it is suitable for indoor industrial areas were corrosion may play a role.
UV (Ultraviolet) energy is emitted by almost every fire; both hydrocarbon and non- hydrocarbon fires. The Ultraviolet Flame Detector will alarm to Arc Welding. To prevent unwanted alarms, for example, electric arcs and or uncovered halogen lamps, the delay time for an alarm is 8-10 seconds. This is sufficient for 90% of the applications.
The UV Flame Detector is suitable for applications that include Hydrogen, Radio Amplifier and Antennas but also Heating Rooms for chemicals and Inside Fume hoods in laboratories.
A self-test is performed every hour to make sure the sensor and electronics operate well. A Test Lamp is available for regular inspections and end-to-end testing.
Please Note: This product does not include the . The swivel bracket shown in the image is for illustrative purposes only and is sold separately.
Key Features of the UV-185/5CZ |
|---|
|
> UV Sensor
> Corrosion-proof GRP housing > Non-Incendive for Zone 2 > Weather Resistant > Relay & 4-20 mA Outputs > Automatic & Manual Self Test > 5 Year Warranty > ATEX, IECEx& FM3611 Approved > EN54-10 & FM3260 Approved > Suitable for Zone 2 & Safe Areas > Low Power |
| Brand | SENSE-WARE |
|---|---|
| Manufacturer Part No. | UV-185/5CZ |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Ultraviolet (UV) |
| Detectable Medium | Flame |
| Warranty | 5 Years |
FAQ’s for SENSE-WARE Ultraviolet (UV) Flame Detector, Red Housing (UV-185/5CZ)
Product Specification for SENSE-WARE Ultraviolet (UV) Flame Detector, Red Housing (UV-185/5CZ)
| Product code: | UV-185/5CZ |
| Description: | SENSE-WARE Ultraviolet (UV) Flame Detector (UV-185/5CZ) |
| Dimensions: | 125 x 80 x 57 mm |
| Spectral range: | 185 - 260 nm |
| Maximum range: | 23 Meters (75 ft) 0.09 m 2 (1 Sq.Ft.) Heptane pan fire |
| Typical response: | <10 seconds |
| Field of view: | 90º x 90º |
| Input power: | 10 - 28 VDC |
| Current: | Normal: 25 mA @ 24 VDC (75 mA peak during Self-Test) Alarm: ± 35 mA @ 24 VDC |
| Start up time: | <10 seconds |
| Analogue signal - Sink: | 0-20 mA |
| Power fault: | 0 mA |
| Optical fault: | 2 mA |
| Normal operation: | 4 mA |
| Alarm: | 20 mA |
| Relays: | Alarm & Fault SPDT |
| Relay contact rating: | 30 VDC / 2 A / 60 W |
| Latching (default) / Non Latching: | DIL Switch selectable |
| LED Indicators: | Yellow - Fault Red - Alarm Green - Normal operation |
| Self Test: | Manual - available (see Manual) Automatic - once per hour |
| Cable gland (pre-mounted): | 1 x M20 |
| Cable diameter: | 5.5-13 mm / 20-60 AWG |
| Housing: | GRP |
| Pressure compensation: | PCE |
| Operating temperature: | -25 °C to + 70 °C Hazardous Area -40 °C to + 70 °C Safe Area |
| IP Rating: | IP65 |
| Humidity: | 95% Non Condensing |
| Warranty: | 5 years |
| Weight: | 465g |
