SENSE-WARE Ultraviolet / Infrared (UV/IR) Flame Detector, Red Housing (UV/IR-210/1CZ)

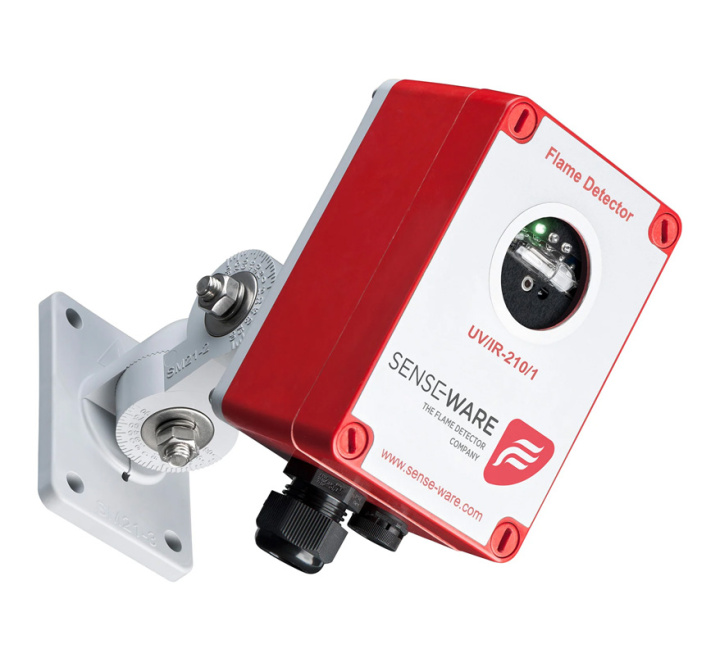

Please Note: This product does not include the swivel mounting bracket. The swivel bracket shown in the image is for illustrative purposes only and is sold separately.
Product Details for SENSE-WARE Ultraviolet / Infrared (UV/IR) Flame Detector, Red Housing (UV/IR-210/1CZ)
The SENSE-WARE UV/IR Flame Detector is a combination of an Ultraviolet- and Infrared- Flame detector which utilises a microprocessor for sophisticated electronic signal analysis.
The IR part of the flame detector has an additional alarm criterion: the analysis of the flame flicker- frequency. The UV and the IR sensor must both exceed their alarm threshold to initiate a fire alarm. The UV/IR Flame Detector has good false alarms rejection capabilities because the Ultraviolet sensor and the Infrared sensor do not share false alarm sources.
The UV/IR Flame Detector can therefore be applied in areas where single UV or IR flame detectors could potentially cause false and/or unwanted alarms. To prevent unwanted alarms, the dynamic delay time for an alarm is 4-8 seconds depending on the size and or the distance to the flames.
The UV/IR Flame Detector is suitable for applications that include Hydrogen but in fact, every flame that emits hot water will be detected. A self-test is performed every hour to make sure the sensor and electronics operate well. A Test Lamp is available for regular inspections and end-to-end testing.
Please Note: This product does not include the . The swivel bracket shown in the image is for illustrative purposes only and is sold separately.
Key Features of the UV/IR-210/1CZ |
|---|
|
> 5 year warranty period
> Sensitive to most fires (including hydrogen flames) > Resistant to artificial light and sunlight > Automatic sensor test > Suitable for outdoor and indoor applications > Operates at temperatures -40 to +70°C (in safe areas only) > GRP housing > Relay output for fault and alarm > CPR/EN54-10 approval and suitable for ATEX cat. 3 for zone 2/22, FM class 3260 and cFMus class 3611 approved |
| Brand | SENSE-WARE |
|---|---|
| Manufacturer Part No. | UV/IR-210/1CZ |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Ultraviolet/Infrared (UV/IR) |
| Detectable Medium | Flame |
| Warranty | 5 Years |
FAQ’s for SENSE-WARE Ultraviolet / Infrared (UV/IR) Flame Detector, Red Housing (UV/IR-210/1CZ)
Product Specification for SENSE-WARE Ultraviolet / Infrared (UV/IR) Flame Detector, Red Housing (UV/IR-210/1CZ)
| Product code: | UV/IR-210/1CZ |
| Description: | SENSE-WARE UV/IR Flame Detector |
| Dimensions: | 125 x 80 x 57 mm |
| Spectral range: | UV 185 - 260 nm IR 2.7 μm |
| Maximum range: | 23 Meters (75 ft) 0.09 m 2 (1 Sq.Ft.) Heptane pan fire |
| Typical response: | <10 seconds |
| Field of view: | 90º x 90º |
| Input power: | 10 - 28 VDC |
| Current: | Normal: 25 mA @ 24 VDC (75 mA peak during Self-Test) Alarm: ± 40 mA @ 24 VDC |
| Start up time: | <10 seconds |
| Analogue signal - Sink: | 0-20 mA |
| Power fault: | 0 mA |
| Optical fault: | 2 mA |
| Normal operation: | 4 mA |
| Alarm: | 20 mA |
| Relays: | Alarm & Fault SPDT |
| Relay contact rating: | 30 VDC / 2 A / 60 W |
| Latching (default) / Non Latching: | DIL Switch selectable |
| LED Indicators: | Yellow - Fault Red - Alarm Green - Normal operation |
| Self Test: | Manual - available (see Manual) Automatic - once per hour |
| Cable gland (pre-mounted): | 1 x M20 |
| Cable diameter: | 5.5-13 mm / 20-60 AWG |
| Housing: | GRP |
| Pressure compensation: | PCE |
| Operating temperature: | -25 °C to + 70 °C Hazardous Area -40 °C to + 70 °C Safe Area |
| IP Rating: | IP65 |
| Humidity: | 95% Non Condensing |
| Warranty: | 5 years |
| Weight: | 465g |
