SENSE-WARE Non-Ex Flame Detector Test Lamp (TC-169/1)
SKU
TC-169/1
£1,333.96
£1,111.63
SENSE-WARE Non-Ex Flame Detector Test Lamp (TC-169/1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for SENSE-WARE Non-Ex Flame Detector Test Lamp (TC-169/1)

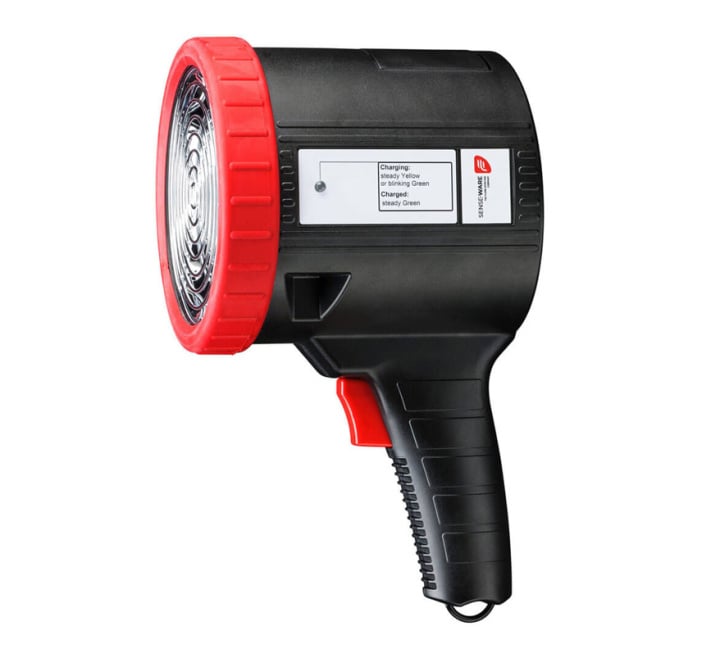

The SENSE-WARE T-169/1 Flame Detector Test Lamp activates SENSE-WARE UV, UV/IR and IR3 Flame Detectors. The test range for SENSE-WARE Flame Detectors is up to 4 meters (13 ft). IR Flame Detectors have an extra alarm criterion; analysing the flicker frequency of a fire. In order to simulate the flame flicker the Test Lamp emits pulsed energy with a frequency of approx. 2 Hz. After the alarm delay time the Flame Detector will activate.
Key Features of the TC-169/1 |
|---|
|
> UV, UV/IR and IR3 (SENSE-WARE only) Flame Detector check up to 4 meters (13 ft)
> Universal charger 100-240 Vac > Including Carrying Case |
| Brand | SENSE-WARE |
|---|---|
| Manufacturer Part No. | TC-169/1 |
Write Your Own Review
FAQ’s for SENSE-WARE Non-Ex Flame Detector Test Lamp (TC-169/1)
No questions yet. Be the first to ask the question!
Product Specification for SENSE-WARE Non-Ex Flame Detector Test Lamp (TC-169/1)
| Product code: | TC-169/1 |
| Description: | SENSE-WARE Test Lamp TC-169/1 for 210-series Flame Detectors, non EX |
| Dimensions: | Housing: 160 x 140 x 260 mm (6.5 x 5.5 x 10 “) Carrying case: 400 x 190 x 310 mm (16 x 8 x 12”) Battery: 103 x 70 x 46 mm (12.5 x 9 x 8.5 “) Charger: 148 x 100 x 45 mm (6 x 2.5 x 2 “) |
| Materials: |
Housing: ABS/PC Carrying case: Polypropylene, inlay: Polyurethane |
| Test range: |
up to 4 m (13 ft) |
| Use: | 10-15 minutes under optimal conditions and continuous use |
| Charger (Adapter): | 100 - 240 Vac, 1600 mA switching with pins for US, EU, GB and AU |
| Light bulb: |
Broad Band, 12 Vdc / 100W |
| Battery type: | Sealed Lead Acid, 12 V / 2.7 Ah |
| Operating temperature: | +4 to +40oC (+39 to +104oF) |
| IP Rating: | IP30 |
| Humidity: | 95% Non Condensing |
| Weight: | Housing: 0.65 kg (1.4 lbs) Charger: 0.25 kg (0.5 lbs) Light bulb: 0.03 kg (0.07 lbs) Battery: 1 kg (2.2 lbs) Carrying case: 2 kg (4.5 lbs) |
