SENSE-WARE IR3 (Infrared) Flame Detector, Red Housing (IR3-109/1CZ)

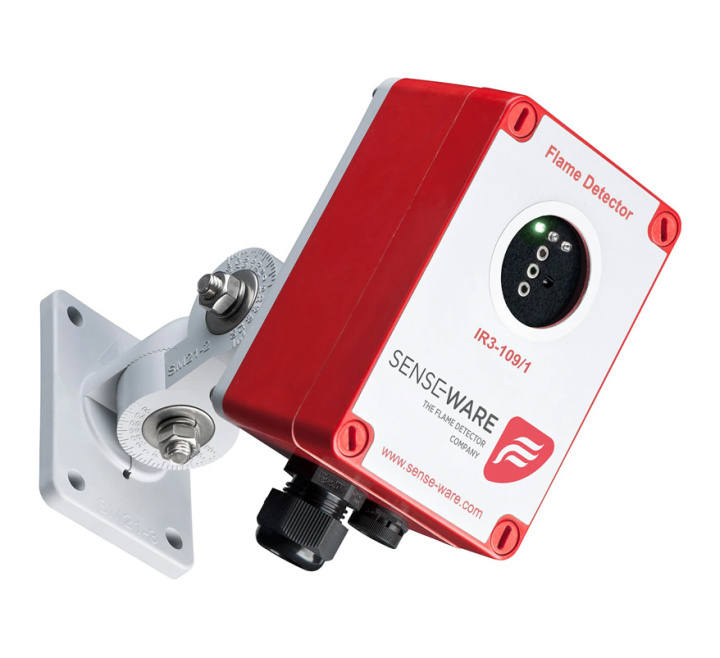

Please Note: This product does not include the swivel mounting bracket. The swivel bracket shown in the image is for illustrative purposes only and is sold separately.
Product Details for SENSE-WARE IR3 (Infrared) Flame Detector, Red Housing (IR3-109/1CZ)
The SENSE-WARE IR3 flame detectors utilise a microprocessor for sophisticated electronic signal analysis.
The Infrared sensors must exceed their alarm threshold balance to initiate a fire alarm. The triple IR flame detector uses an additional alarm criterion: the analysis of the flame flicker frequency. The infrared IR3 flame detector has good false alarm rejection capabilities, including Arc Welding (> 3m), chopped sunlight or halogen lights but is still able to detect a real fire at the same time.
To prevent unwanted alarms, the dynamic delay time for an alarm is 4-8 seconds depending on the size and or the distance to the flames. The triple IR flame detector is suitable for the detection of light and heavy Hydrocarbon fires, in fact, every yellow to red flame that emits carbon dioxide will be detected.
A self-test is performed every hour to make sure the sensor and electronics operate well. A Test Lamp is available for regular inspections and end-to-end testing.
Please Note: This product does not include the . The swivel bracket shown in the image is for illustrative purposes only and is sold separately.
Key Features of the IR3-109/1CZ |
|---|
|
> 5 year warranty
> Suitable for heavy and light Hydrocarbons such as Gasoline, Diesel, Methanol and Ethanol > Resistant to artificial light and sunlight > Automatic sensor test > Suitable for indoor and outdoor applications > Operating temperature -40 to +70°C (in safe area’s only) > GRP housing > Relay output for Alarm and Fault > Sinking 4-20 mA output (stepped) > CPR/EN54-10 certified > FM class 3260 approved > ATEX certified: II 3G Ex nA IIC T4 Gc, II 3D Ex tc IIIC T 71°C Dc IP65, ambient temp.: -25° to +70°C > cFMus class 3611 (Nonincendive, Class I, II and III, Div 2), ambient temp.: -25° to +70°C |
| Brand | SENSE-WARE |
|---|---|
| Manufacturer Part No. | IR3-109/1CZ |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Triple Infrared (IR³) |
| Detectable Medium | Flame |
| Warranty | 5 Years |
FAQ’s for SENSE-WARE IR3 (Infrared) Flame Detector, Red Housing (IR3-109/1CZ)
Product Specification for SENSE-WARE IR3 (Infrared) Flame Detector, Red Housing (IR3-109/1CZ)
| Product code: | IR3-109/1CZ |
| Description: | SENSE-WARE Triple Infrared Flame Detector |
| Dimensions: | 125 x 80 x 57 mm |
| Spectral range: | 2.7 - 5.0 Microns |
| Maximum range: | 35 Meters (115 ft) 0.09 m 2 (1 Sq.Ft.) Heptane pan fire |
| Typical response: | <10 seconds |
| Field of view: | 90º x 90º |
| Input power: | 10 - 28 VDC |
| Current: | Normal: 25 mA @ 24 VDC (75 mA peak during Self-Test) Alarm: ± 35 mA @ 24 VDC |
| Start up time: | <10 seconds |
| Analogue signal - Sink: | 0-20 mA |
| Power fault: | 0 mA |
| Optical fault: | 2 mA |
| Normal operation: | 4 mA |
| Alarm: | 20 mA |
| Relays: | Alarm & Fault SPDT |
| Relay contact rating: | 30 VDC / 2 A / 60 W |
| Latching (default) / Non Latching: | DIL Switch selectable |
| LED Indicators: | Yellow - Fault Red - Alarm Green - Normal operation |
| Self Test: | Manual - available (see Manual) Automatic - once per hour |
| Cable gland (pre-mounted): | 1 x M20 |
| Cable diameter: | 5.5-13 mm / 20-60 AWG |
| Housing: | GRP |
| Pressure compensation: | PCE |
| Operating temperature: | -25 °C to + 70 °C Hazardous Area -40 °C to + 70 °C Safe Area |
| IP Rating: | IP65 |
| Humidity: | 95% Non Condensing |
| Warranty: | 5 years |
| Weight: | 465g |
