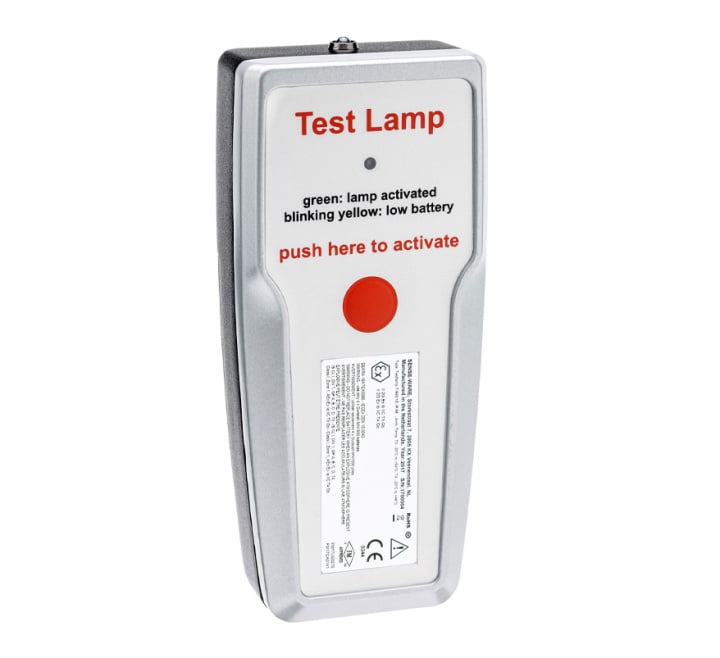

SENSE-WARE Intrinsically Safe Flame Detector Test Lamp (TC-940/1Z)
SKU
TC-940/1Z
£1,648.88
£1,374.07
SENSE-WARE Intrinsically Safe Flame Detector Test Lamp (TC-940/1Z)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for SENSE-WARE Intrinsically Safe Flame Detector Test Lamp (TC-940/1Z)
The SENSE-WARE T-940/1Z Intrinsically Safe flame detector test lamp activates SENSE-WARE UV, UV/IR and IR3 Flame Detectors. The test range for SENSE-WARE Flame Detectors is up to 4 meters (13 ft). The test lamp will activate the internal test sequence and after a successful test, the Alarm Outputs of the flame detector will be activated.
FM Approvals certified this Test Lamp to: FM Class 3600:2011, FM Class 3610:2015, FM Class 3810:2005 and FM Class 3260:2000 (see also below). Only very few Test Lamps in the World carry this special marking.
Key Features of the TC-940/1Z |
|---|
|
> UV, UV/IR and IR3 (SENSE-WARE Flame Detectors only) check up to 4 meters (13 ft)
> Lightweight Aluminium Alloy enclosure > Battery operated (4 AA Batteries included) > Including Carrying Case > FM Class 3600:2011, FM Class 3610:2015, FM Class 3810:2005 and FM Class 3260:2000 > IECEx certified: Ex ib IIC T3 Gb; Ex ib IIC T4 Gb > ATEX certified: II 2G Ex ib IIC T3 Gb; II 2G Ex ib IIC T4 Gb > T3 Ta = -20°C to +54°C; T4 Ta = -20°C to +46°C |
| Brand | SENSE-WARE |
|---|---|
| Manufacturer Part No. | TC-940/1Z |
Write Your Own Review
FAQ’s for SENSE-WARE Intrinsically Safe Flame Detector Test Lamp (TC-940/1Z)
No questions yet. Be the first to ask the question!
Product Specification for SENSE-WARE Intrinsically Safe Flame Detector Test Lamp (TC-940/1Z)
| Product code: | TC-940/1Z |
| Description: | SENSE-WARE Test lamp for 210 series flame detectors Intrinsically safe |
| Dimensions: | Box: 32 x 30 x 13 cm ( 13” x 11” x 5” ) |
| Materials: | Housing: Aluminium |
| Test range for all 210-series flame detectors of SENSE-WARE: Not suitable for detectors of other brands | up to 4m (13 ft) |
| Voltage: | 6 Vdc nominal |
| ATEX Certificate: | II 2G Ex ib IIC T4/T3 Gb Ambient temperature range: For temperature class T3: -20 - + 54oC For temperature class T4: -20 - + 46oC |
| IECEx Certificate: | Ex ib IIC T4/T3 Gb Ambient temperature range: For temperature class T3: -20 - + 54oC For temperature class T4: -20 - + 46oC |
| FM Approval: | Intrinsically safe |
| Batteries: | 4 x Duracell MN1500 alkaline AA battery, 1.5 Vdc |
| Operating temperature: | -20 to +54oC |
| Storage temperature: | 5 to +30oC |
| IP Rating: | IP66 |
| Weight: | 3 kg (7 lbs.) (shipping weight) |
