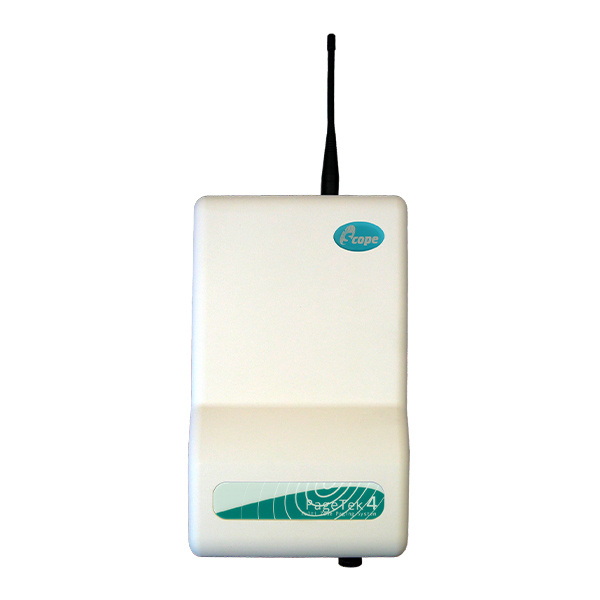

Scope PageTek 4 230V 5 Zone Paging Transmitter with Aerial (PT4-05-AC)
Product Details for Scope PageTek 4 230V 5 Zone Paging Transmitter with Aerial (PT4-05-AC)
Scope PageTek 4 5 Zone paging transmitter (PT4-05-AC) is a mains powered transmitter which provides 5 programmable zone inputs which, when triggered, automatically send the active zone message to portable or fixed pagers. This message can be repeated at predetermined intervals and a secondary message can be sent when the zone returns to its inactive state if required.
Multiple transmitters can be deployed at various locations all signalling to the same pager/pager groups.
Regular ‘In Service’ calls can be automatically sent to the receiving devices which can indicate ‘No Service’ on the pagers, or trigger a ‘fault’ zone on fixed receivers if the calls are not received. This gives the end-user confidence that the system is operating properly.
For advanced users who wish to program the unit themselves, a Programming Kit can be purchased. This consists of Windows based application software and a USB cable for PC. This allows all functions to be programmed and stored in the system in secure non-volatile memory.
Key Features of the PT4-05-AC |
|---|
|
> Fully programmable 5 zone input UHF transmitter
> Mains powered > All inputs configurable as dry contact or voltage input > Ranges of up to 1 mile with standard 1/4 wave aerial > Fully programmable via USB with optional PC software > Automated 'In Service' calls can be configured to alert pagers to the loss of radio signal > Programmable individual pager text messages for each zone and each zone state > Adjustable trigger times, delays, alarm repeats are all programmable options. > High quality, high power (1w erp) transmitter modules provide rock-solid RF performance > UHF POCSAG signalling format ensures excellent propagation even in difficult environments |
| Brand | Scope Communications |
|---|---|
| Manufacturer Part No. | PT4-05-AC |
FAQ’s for Scope PageTek 4 230V 5 Zone Paging Transmitter with Aerial (PT4-05-AC)
Product Specification for Scope PageTek 4 230V 5 Zone Paging Transmitter with Aerial (PT4-05-AC)
| Dimensions | (H)* 328 x (W) 190 x (D) 75 mm[*496 mm with 1/4 wave antenna] |
| Power Input | 90-230V AC 50-60 Hz @250mA |
| Facilities Required | 230V ac 13A mains socket or 5A fused spur within 1 metre of unit |
| Frequency Range (MHz) (subject to licensing conditions) | 446.000 - 469.700 |
| RF Output Power | 1 watt (maximum) |
| Approvals | CE marked and compliant with the R&TTE Directive 1999/5/EC |
| Standards Applied | EN 300 224 (On-Site Paging) |
| UK Licence Requirement | Business Radio Simple Site Licence Ofcom reference OFW432 (www.ofcom.org.uk) |
