Discontinued Product

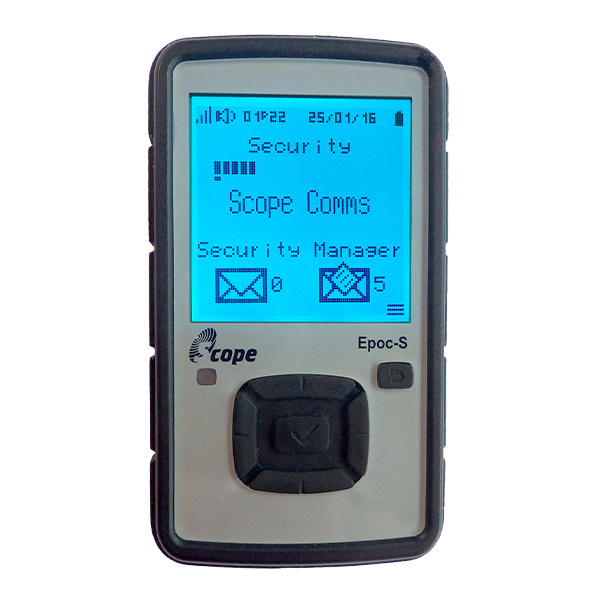

Scope EPOC-S Critical Alert Communicator Pager (EPOC-SM)
Discontinued
Alternative Products
Product Details for Scope EPOC-S Critical Alert Communicator Pager (EPOC-SM)
This responder has been configured to work as a pager with the PageTek Pro system.
The EPOC-S heralds the beginning of a new era in critical response communication.
Gone are the grey days of monochrome messaging. A full frame colour backlight bathes the user in one of 7 beautiful colours, programmable to suit the call type. So calls can be colour-coded for instant recognition of urgency.
The EPOC-S is rechargeable and comes with a drop-in docking mains charger (these can be clipped together to form a charging rack). The battery life between charges can be up to 20 days, depending on usage level .
Gone are the worries of dropping it in the sink, in the bath or down the loo. Whilst we wouldn’t recommend such activity (and it’s certainly not self-retrieving), the rugged casing, sealed to IP67, should ensure that it keeps on working.
Still want more? Up to 128 capcodes, each with 4 subaddresses. 21 ring types with 5 volume levels. White LED flash alert. In/Out charger status. Remote firmware upgrade path. These are just some of the main features…..
Key Features of the EPOC-SM |
|---|
|
> Responder has been configured as a pager for the PageTek Pro system
> Rugged casing to IP67 > Large screen with multi-colour backlighting > Hi-intensity, white LED feature > Single board design for increased reliability > Rechargeable Lithium Ion battery > 14 days typical battery life > Rugged removable back clip |
| Brand | Scope Communications |
|---|---|
| Manufacturer Part No. | EPOC-SM |
FAQ’s for Scope EPOC-S Critical Alert Communicator Pager (EPOC-SM)
Product Specification for Scope EPOC-S Critical Alert Communicator Pager (EPOC-SM)
| Dimensions | 54.7 (W) x 97.4(H) x 16.7 (D) mm |
| Display | 35.5 x 35.5 mm LCD 96 x 96 dots Multi-colour backlight 8 lines of 16 characters per line |
| Addresses | 128 addresses (software decoding), each with 4 sub-addresses |
| Message storage | 20 messages of 256 characters each 64 pre-defined messages 10 pre-defined Status messages |
| Alerts | 21 tones selectable Vibrate/Tone & Vibrate/Vibrate then Tone/Mute Flash LED |
| Weight | 90g (with battery) |
| Signalling protocol | POCSAG |
| Data transmit rate | 512, 1200 baud |
| Sensitivity | 2.5uV/m @ 512 bd, 3.0uV/m @ 1200 bd |
| Selectivity | ≥60dB +/- 25 KHz |
| Tx Output Power | Up to +14dBm |
| Power Supply | Li-Ion 3.7v battery 700mA Charger, 5V micro USB input |
| Approvals Compliance | EN 300 220 (Radio) EN 301489 (EMC) EN 60950 (Safety) |
