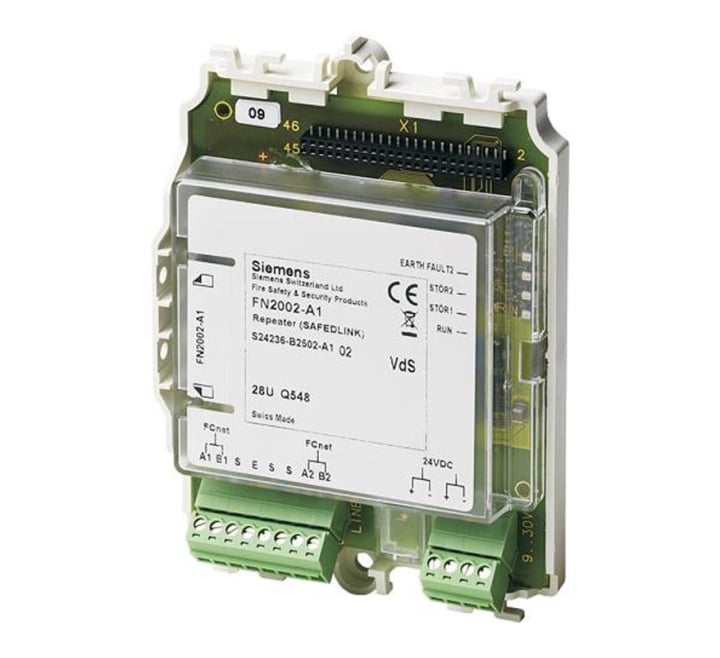

Siemens FN2002-A1 Cerberus PRO Network Repeater Module (SAFEDLINK) (S24236-B2502-A1)
SKU
S24236-B2502-A1
£445.44
£371.20
Siemens FN2002-A1 Cerberus PRO Network Repeater Module (SAFEDLINK) (S24236-B2502-A1)
- Buy 10 for £404.92 £337.43 each and save 9%
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Siemens FN2002-A1 Cerberus PRO Network Repeater Module (SAFEDLINK) (S24236-B2502-A1)
The Siemens FN2002-A1 (SAFEDLINK) is a network repeater in the FCnet/C-WEB cluster. It is used for the extension of the range of the system bus. 1 repeater max can be used between 2 stations. The distance between network module and repeater may be up to 1000m.
The repeater can be mounted directly on a plane surface, onto a U-rail TS35 with the enclosed mounting feet.
The accessories must be ordered separately.
Key Features of the S24236-B2502-A1 |
|---|
|
> Repeater in the FCnet/C-WEB cluster
> Extend the range of the system bus > 1 repeater max. can be used between 2 stations > Distance between network module and repeater may be up to 1000 m > Repeater can be mounted directly on a plane surface, onto a U-rail TS35 with the enclosed mounting feet > Accessories must be ordered separately |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FN2002-A1 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FN2002-A1 Cerberus PRO Network Repeater Module (SAFEDLINK) (S24236-B2502-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FN2002-A1 Cerberus PRO Network Repeater Module (SAFEDLINK) (S24236-B2502-A1)
| Product: | Siemens Repeater (SAFEDLINK) |
| Product code: | S24236-B2502-A1 |
| Dimensions: | W:132mm x H:90mm x D:24mm |
| Operating voltage: |
DC 9 - 30V |
| Operating current: |
Max. 45 mA |
| Cable capacity: | 0.08 - 1.5mm2 |
| Communication protocol: | SAFEDLINK (UDP/IP) |
| Protection category: | IP30 |
| Relative humidity: | ≤95 % rel. |
| Colour housing/cover: | Pure white, ~RAL 9010 / Transparent matte |
