C-TEC EP Extinguisher Release Remote Status Unit, Surface Mount (EP210S)
SKU
EP210S
£211.68
£176.40
C-TEC EP Extinguisher Release Remote Status Unit, Surface Mount (EP210S)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for C-TEC EP Extinguisher Release Remote Status Unit, Surface Mount (EP210S)

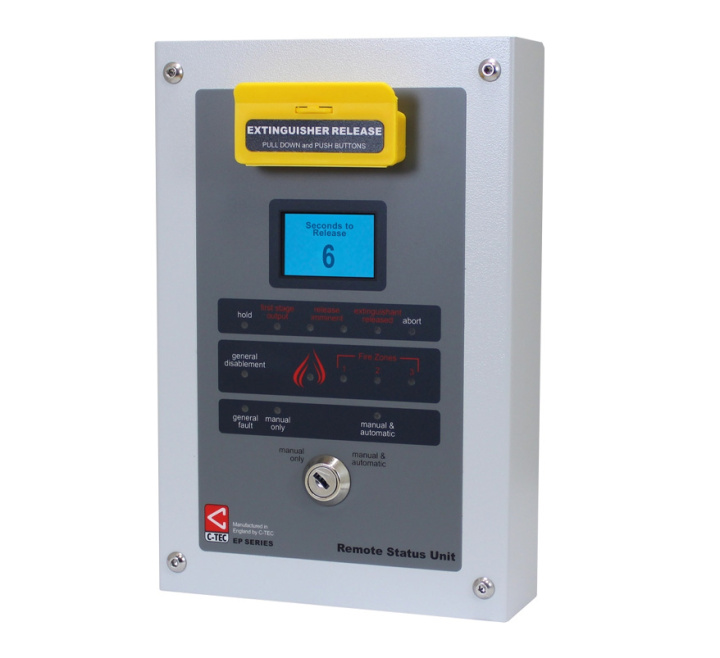

The C-TEC EP210S Surface Mount Remote Status Unit (RSU) connects to the EP203 Automatic Extinguisher panel and provides remote system status indication, an LCD status display unit, manual release of extinguishant, an extinguishant mode keyswitch and three monitored inputs.
Key Features of the EP210S |
|---|
|
> Designed to connect to the RS485 terminals on an EP203 Automatic Extinguisher Panel to provide remote system status indication via a 128 x 64 pixel LCD status display
> Also includes a pull-down manual release button, a mode (auto/manual) keyswitch and a wide range of system status indicators > Three monitored input connections (Hold, Abort and Mode) > Max. 8 remote status units per EP203 panel > Flush remote status units (EP210F) and weather proof enclosures (BF359/1) also available |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | EP210S |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for C-TEC EP Extinguisher Release Remote Status Unit, Surface Mount (EP210S)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC EP Extinguisher Release Remote Status Unit, Surface Mount (EP210S)
| Power requirements | 21-28VDC (200mA electronic fuse). |
| Quiescent current | 7mA. |
| Auxiliary inputs | Three: (1) Hold; (2) Abort; (3) Mode. A 6k8 EOL resistor must be fitted across the terminals of the last device on each monitored input circuit. Unused circuits must have the 6k8 resistor fitted a |
| Indicators | Gen. fire; Fire Zones (x3); Gen. disablement; Hold; 1st Stage Output; 2nd Stage Output; Release Imminent (x2); Exting. Released; Abort; Gen. Fault; Man. Only; Man/Auto. |
| Controls | Extinguishant release (housed in yellow casing); Operation keyswitch (Manual only or Manual & Auto). |
| Product dimensions (mm) | 160 W x 240 H x 51 D mm. |
| Construction & finish | Metal. |
| IP Rating | IP30. |
| Weight | 1.498kg. |
| Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
| Network specification | RS485; Max. 8 remote status units (any mix) per EP203; Four wire connection (2 power, 2 data); Daisy-chain wiring. |
