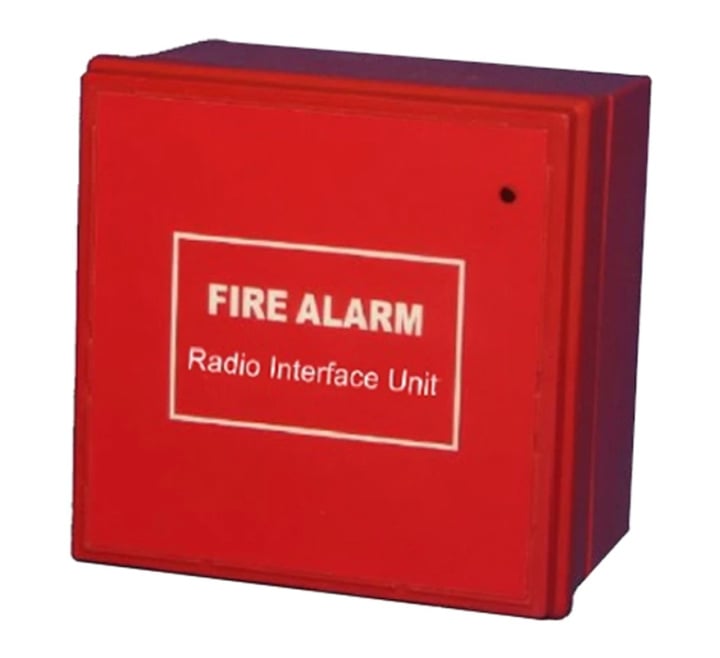

Product Details for Electro Detectors Zerio Plus Wireless Input / Output Unit (EDA-T6080)
The EDA-T6080 Zerio Plus Input/Output unit from Electro-Detectors represents a new benchmark in terms of what the marketplace can expect from a radio I/O unit. This single unit has a whole host of modes of operation giving huge flexibility for what the unit can be used for. The unit is the latest development from a company which has over 30 years of designing and manufacturing radio fire alarm systems. Based on the highly successful Millennium and Zerio ranges, the addressable unit contains a powerful processor, utilising surface mount technology to achieve the ultimate in performance and reliability.
Long operational life and stable operation has been successfully achieved by using sophisticated protocols and the most technologically advanced components. A unique serial number and the length of time in service are stored in its internal memory. All data is retained in this non-volatile memory which is not corrupted or erased even should power be removed. A battery life of up to 7 years and continual monitoring minimise maintenance but sophisticated self-testing ensure confidence in the units operation. The Zerio Plus I/O unit is fully compliant with the relevant sections of BS5839 and EN54 including Part 25. The unit is supplied complete with transmitter, mounting box and battery and just requires two screws to mount the unit to the wall.
Key Features of the EDA-T6080 |
|---|
|
> Compliant with EN54 Part 25
> 2 monitored inputs > Set of clean NO/NC contacts > Fully addressable > Up to 7 year battery life > Small, attractive and compact design > Compatible with all Zerio Plus panels |
| Brand | Electro Detectors |
|---|---|
| Manufacturer Part No. | EDA-T6080 |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Zerio Plus |
| Colour | Red |
| Warranty | 1 Year |
FAQ’s for Electro Detectors Zerio Plus Wireless Input / Output Unit (EDA-T6080)
Product Specification for Electro Detectors Zerio Plus Wireless Input / Output Unit (EDA-T6080)
- Power Source : Dual lithium cells
- Battery Life : Up to 7 years
- Battery Pack : 1 x EDA-Q690
- Temperature Range : 0 to 60°C
- Humidity : 0 to 95% (No Condensation)
- Construction :
- Casting : Injection moulded UV, Stabalised ABS plastic
- Electronics : Surface mount technology
- Options :
- Remote antenna
- Different colours available upon request
- 2 input option
- Transmitter Frequency : 868 Mhz
- Transmission Type : Narrow Band FM
- Channels : 13 available
- Weight (Inclding Back Box) : 200g
- Dimensions (Including Back Box) : 90 (Width) x 62 (Height) mm
- Indicators :
- Alarm : Red Solid LED
- Fault : Red Flashing LED
- Audible Warning : Sounds in alarm and test mode
- Fixing Holes : 4x4mm (6 screws)
- Finish : Red polished
