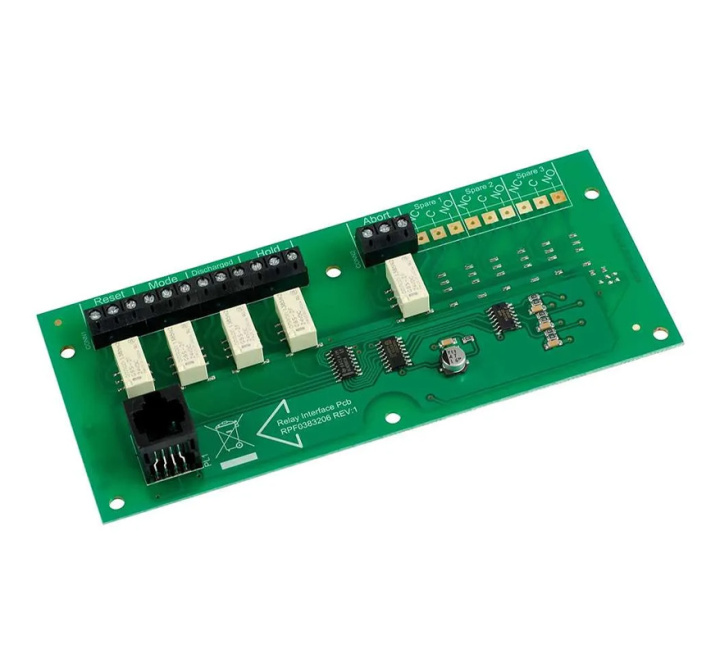

C-TEC EP Output Expansion Relay Board for EP203 Panel (EP212)
SKU
EP212
£109.75
£91.46
C-TEC EP Output Expansion Relay Board for EP203 Panel (EP212)
- Buy 10 for £105.53 £87.94 each and save 4%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for C-TEC EP Output Expansion Relay Board for EP203 Panel (EP212)
The C-TEC EP212 Output Expansion Relay Board is designed to mount inside the EP203 Automatic Extinguisher Panel. When connected, it provides five isolated (voltage-free) relay outputs which are directly controlled by the EP203 panel.
Note: The EP212 board is required for EN 12094-1 compliance. The outputs of this product are rated for switching signalling circuits only and ARE NOT designed to switch mains voltages.
Key Features of the EP212 |
|---|
|
> An optional system expansion device for use with the EP203 three zone automatic extinguisher panel
> Mounts inside the EP203 panel to provide five volt free relay contacts (reset, mode, discharged, hold and abort) > Reset relay switches during the panel’s reset cycle > Mode relay switches when the extinguishant system’s mode is changed to manual > Discharged relay switches when a released flow switch input (e.g. from the extinguishant pipework) is received to indicate the extinguishant has been released > Hold relay switches when a hold input is received at the panel. If the panel is in 2nd stage alarm (i.e. it is in automatic mode and detection circuits are activated, or it is in either automatic/manual mode and a manual release input is operated) the extinguishant release sequence is halted > Abort relay switches when an abort input is received at the panel to cancel the extinguishant release sequence |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | EP212 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for C-TEC EP Output Expansion Relay Board for EP203 Panel (EP212)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC EP Output Expansion Relay Board for EP203 Panel (EP212)
| Dimensions | 70 W x 160 H x 22 D mm. |
| Weight | 62g. |
| Properties | Single pole changeover contacts; Rated at 1A 30V DC. DO NOT use to switch Mains voltages. |
