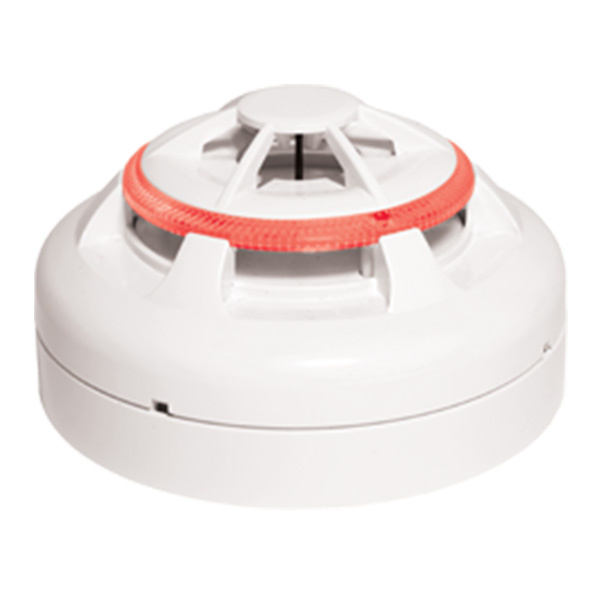

Nittan Evolution Conventional 92°C Heat Detector (EVC-H-CS)
SKU
EVC-H-CS
£18.00
£15.00
Nittan EVC-H-CS Evolution Conventional 92°C Heat Detector (High Temp)
In Stock
Product Details for Nittan Evolution Conventional 92°C Heat Detector (EVC-H-CS)
Unlike smoke detectors that detect the presence of smoke particles, heat detectors only react to changes in temperature.
The EVC-H-CS is a high temperature (92°C) Thermistor based Heat Detector, which uses electronic components that change their resistance when heated; this change is detected by circuitry within the detector.
Base Sold Separately
Key Features of the EVC-H-CS |
|---|
|
> 92°C Heat Detector
> Omniview 360° LED > Internal Alarm Current Limiting Resistor > Wide Operational Voltage Range (11v-32v) |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | EVC-H-CS |
Write Your Own Review
FAQ’s for Nittan Evolution Conventional 92°C Heat Detector (EVC-H-CS)
No questions yet. Be the first to ask the question!
Product Specification for Nittan Evolution Conventional 92°C Heat Detector (EVC-H-CS)
| Manufacturer: | Nittan |
| Product Code: | EVC-H-CS |
| Sensor Element: | Thermister |
| Operating Voltage: | 11V d.c to 32V d.c |
| System Voltage: | 24V d.c |
| Quiescent Current: | 30µA |
| Alarm Current: | 50mA@ 24V |
| Current for external remote LED indicator: | Limit to 20mA max |
| Typical Application Temperature: | 55°C |
| Maximum Application Temperature: | 80°C |
| Min. and Max. Static Response Temperature: | 84°C / 100°C |
| Minimum Ambient Temperature: | -10°C |
| Storage Temperature: | -25°C to +90°C |
| Charging Time: | 30 Seconds |
| Relative Humidity: | ≤ RH95% non-condensing |
| I.P. Protection Rating: | IP40 |
| Material: | ABS |
| Dimensions: | ∅105mm x 42.5mm (Sensor head) - ∅105mm x 57.5mm (Sensor head and UB-4) |
| Mass: | 118g (Sensor head) - 183g (Sensor head and UB-4 base) |
| EMC Conformance: | EN54-5 including EMC conformance to BSEN 50130-4 |
| CE Conformity: | Yes |
| Standards / Ceritification: | EN54-5:2000 + A1:2002 |
