Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

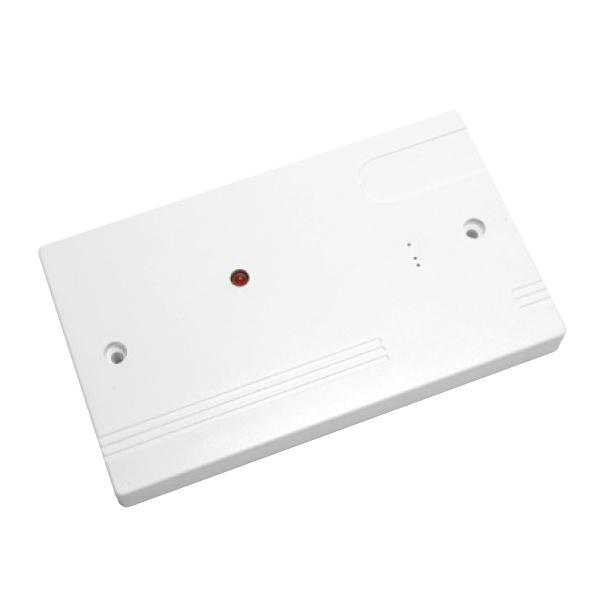

Nittan EV-ZMU Zone Monitor Module (Requires Ext 24v PSU)
SKU
EV-ZMU
Nittan EV-ZMU Zone Monitor Module (Requires Ext 24v PSU)
Discontinued
Alternative Products
Product Details for Nittan EV-ZMU Zone Monitor Module (Requires Ext 24v PSU)
The Addressable Nittan EV-ZMU provides the ability to connect and Interface one or two zones of 24V dc 2-wire conventional detectors (non-addressable) to the Fire Alarm Controller. The EV-ZMU monitors the status of detectors and wiring to detectors and signals.
Installation of the EV-ZMU comprises the following:
• Installation of cables.
• Cable continuity, Insulation and Resistance checks.
• Installation of ancillary devices and connection.
Please Note: Only class B operation is supported on Mx4000N series panels
Please Note: The EV-ZMU may need to be Reset when Re-enabling the device, as the Input remains active when Disabled
Key Features of the EV-ZMU |
|---|
|
> 2 x Class B Input circuits
> EEPROM Addressed (Programmer) > Housing fits MK 2 gang pattress box |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | EV-ZMU |
FAQ’s for Nittan EV-ZMU Zone Monitor Module (Requires Ext 24v PSU)
No questions yet. Be the first to ask the question!
Product Specification for Nittan EV-ZMU Zone Monitor Module (Requires Ext 24v PSU)
| Manufacturer: | Nittan |
| Product Code: | EV-ZMU |
| Operating Voltage: | 20V-35V (Addressable Loop) |
| Operating Current (From Addressable Loop): | Class B Quiescent: 280μA |
| Operating Current (From External PSU): | Class B Quiescent: 14mA, Class B lalarm: 50mA / spur | Standard: | EN54-17: 2005 / AC: 2007 |
| Alarm Indication: | Red LED |
