Nittan Evolution Addressable Ceiling / Wall Mounted Sounder (EV-SDR)
SKU
EV-SDR_Sounder
£46.80
£39.00
Nittan EV-SDR Evolution Addressable Ceiling / Wall Mounted Sounder
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Nittan Evolution Addressable Ceiling / Wall Mounted Sounder (EV-SDR)

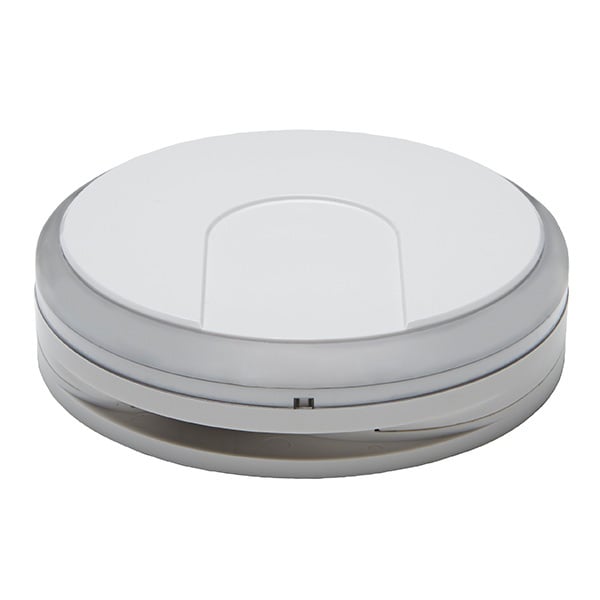

The EV-SDR is a low profile Sounder device suitable for both Ceiling or Wall mounting applications. The device has 12 tone options (3 Approved), which are easily selectable via DIP switch settings.
Key Features of the EV-SDR_Sounder |
|---|
|
> Nittan Evolution FSK Protocol
> EEPROM Addressed (Programmer) > 12 Tones DIP Switch Selected (3 Approved Tones) > Replaces EV-ABS Sounder > Stand alone device, not for use with Detector |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | EV-SDR_Sounder |
Write Your Own Review
FAQ’s for Nittan Evolution Addressable Ceiling / Wall Mounted Sounder (EV-SDR)
No questions yet. Be the first to ask the question!
Product Specification for Nittan Evolution Addressable Ceiling / Wall Mounted Sounder (EV-SDR)
| Manufacturer: | Nittan |
| Product Code: | EV-SDR Sounder |
| Operating Voltage: | 24-38V DC |
| System Voltage: | 35V DC |
| Quiescent Current: | 200µA |
| Sounder Operating Current: | 4mA (Low) 6 mA (High) |
| Operating Temperature: | -10°C to +55°C |
| Storage Temperature: | -25°C to +70°C |
| Relative Humidity: | RH95% non-condensing |
| IP Rating: | IP21C |
| Mass: | 200g |
| Material: | ABS |
| Dimensions: | ∅115mm x 30.91mm |
| Addressing Method: | Soft addressing, Non-Volatile EEPROM |
| Sounder Tones: | 12 Tones DIP Switch select (3 Approved) |
| Sounder Output: | 73 to 88 dB(A) @ 90°/1 metre |
| Sounder Device: | Piezo |
| Certified to Standard: | EN54-3: 2001 + A1: 2002 + A2: 2006 |
| CPD Number: | 0359-CPR-00457 |
