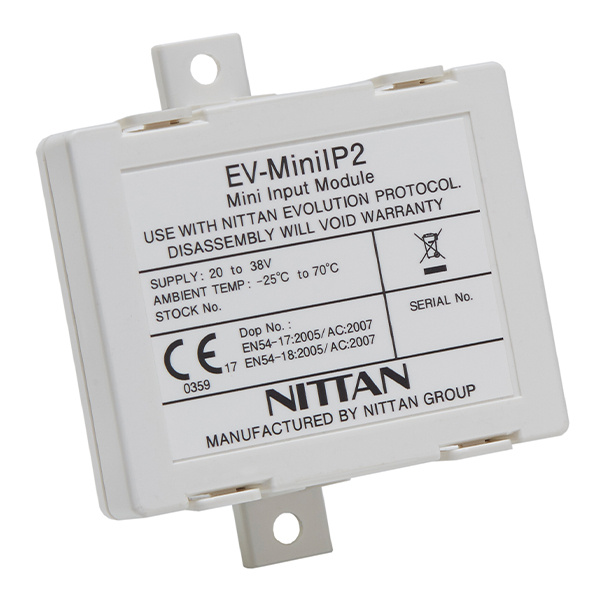

Nittan Evolution Addressable Mini Input Module with Isolator (EV-MiniIP2)

The Nittan EV-Mini IP2 is a Single Input module, with integral –ve line Short circuit isolator compatible with Evolution analogue addressable system devices.

The module is compact and suitable for mounting within other equipment, such as Firebeam or Aspirating detectors. A remote LED output is provided for Input status indication.

Device address may be set using EV-AD2-EXT Hand held programmer.

The Short Circuit Isolator will protect the system, whilst allowing the device to continue communication from the opposite side. An indicating LED is provided and the isolator will selfreset when the fault clears.

Not compatible with Advanced MxPro4 (Mx4000) Panel. Please use Non-SCI model.

It is not possible to mix +ve and -ve isolator styles on a system.

The following resistors are required for Fault and Alarm monitoring:

• EOL = 10k Ohm
• Alarm = 470 / 680 Ohm
