Nittan EV-MINI-I/P Mini Input Module
Discontinued
Alternative Products
Product Details for Nittan EV-MINI-I/P Mini Input Module

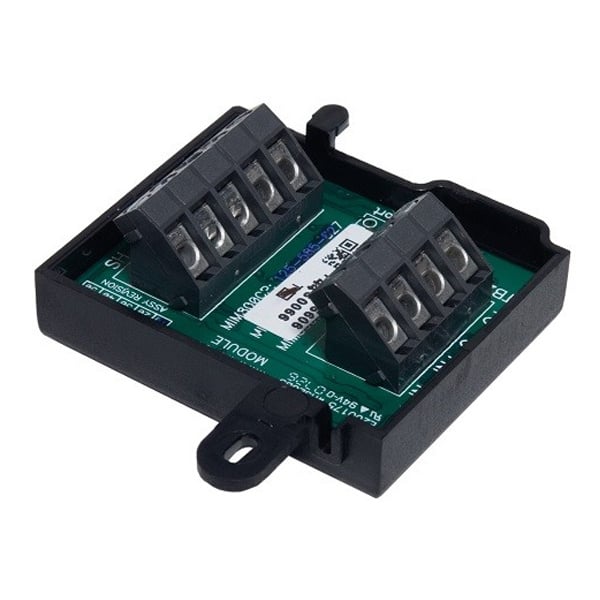

The Nittan EV-Mini IP Mini Input module is designed to monitor fire contacts, such as extinguishing system control, ventilation control, fire door control etc.
The module provides one identifiable detection spur which is capable of monitoring multiple normally open contacts.
The EV-Mini IP can be mounted in any electrical enclosure with sufficient depth to accommodate it.
EV-Mini IP and the contacts monitored by the IN+ and IN- terminals, ie, no field wiring.
The remote LED (if required, not supplied) must be located within the same electrical enclosure.
Address Programming
The EV-Mini IP must have its Loop Address programmed prior to installation with the EV-AD2 Programmer, using the Universal Addressing Lead (Two Pin) supplied with the EV-AD2 kit, by connecting Red pin to L+ & Black pin to L-. You can also use the EV Module Addressing Lead (Three Pin) via the Programming Port, after the device is connected to the Loop cables.
Key Features of the EV-MINI-I/P |
|---|
|
> Monitors multiple normally open contacts
> Identifies and communicates the status of monitored contacts and wiring to the Evolution CIE > Contains an output for an external LED (not supplied). As a status indicator, the LED lights when the monitored contact (normally off) switches to an active state > Housing, KAC World Series MCP Cradle > 1 x Class B Input > EEPROM Addressed (Programmer) |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | EV-MINI-I/P |
FAQ’s for Nittan EV-MINI-I/P Mini Input Module
Product Specification for Nittan EV-MINI-I/P Mini Input Module
| Type Identification Value | 51 |
| System Compatibility | Use only with Evolution Fire Alarm Panels (CIE) which support this unit |
| Loop Voltage | 20 - 38 Vdc |
| Environment | Indoor Application only |
| Operating Temperature | -25° to +70°C |
| Storage Temperature | -40° to +80°C |
| Operating Humidity | Up to 95% non-condensing |
| Dimensions (HWD) | 57 x 48 x 13mm |
| Mounting Requirements | Any suitable electrical enclosure |
| Wire Size | Min 1.5mm2 Max 2.5mm2 |
| Battery Requirements | Standby Alarm: 0.46mA (without remote LED): 0.46mA Alarm (with remote LED): 4.5mA |
| Maximum Wiring Resistance | Monitored Circuit: 10Ω |
| Addressable Device Conditions | • Normal • Active • Short Circuit wiring fault • Open Circuit wiring fault • Device Type invalid • Device No Response |
| Input Circuit | Non Interrupt Mode EOL - 200R Alarm - 100R Interrupt Mode EOL - N/A Alarm - 100R |
| Declaration of Performance | 00114 |
