Nittan Evolution Addressable IP67 Weatherproof Manual Call Point with SCI (-ve isolator) (EV-MCP2-SCI-IP67)
Product Details for Nittan Evolution Addressable IP67 Weatherproof Manual Call Point with SCI (-ve isolator) (EV-MCP2-SCI-IP67)

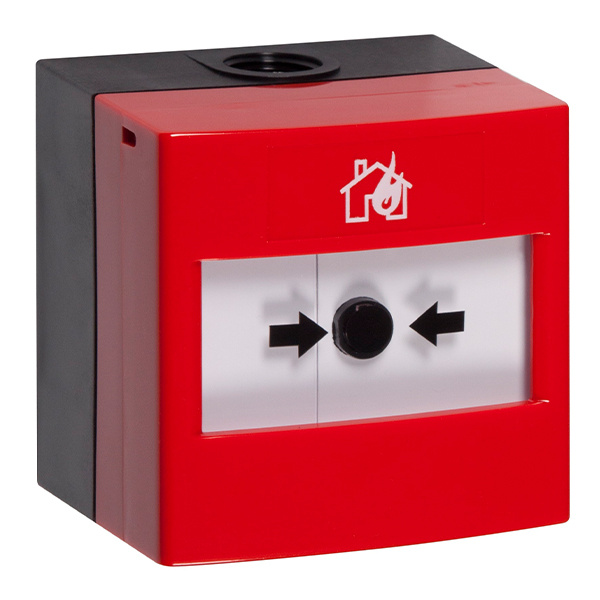

The Nittan EV-MCP2-SCI-IP67 is a Type A Outdoor Manual Call Point, with integral –ve line Short circuit isolator compatible with Evolution analogue addressable system devices.
The Manual Call Point comprises a Non Frangible, Resettable, operating face with an LED provided to Indicate Alarm active condition.
The device is provided with a waterproof Backbox with knock-outs and M20 threads for easy fitment of Cable glands.
The address may be set using the DIL switch on the Device.
The Short Circuit Isolator will protect the system, whilst allowing the device to continue communication from the opposite side. The isolator will self-reset when the fault clears.
Not compatible with Advanced MxPro4 (Mx4000) Panel. Please use Non-SCI model.
It is not possible to mix +ve and -ve isolator styles on a system.
All wiring must conform to the current edition of IEE Wiring regulations and BS5839 Part 1.
All loop Cable Screens shall be connected
together, but must be Isolated from Ground.
Cable Screens shall be connected to Earth
Ground within the Control Panel ONLY
Key Features of the EV-MCP2-SCI-IP67 |
|---|
|
> Fully integrated -ve Line Isolator*
> Easily resettable with dedicated key > Supplied with Surface & Flush adaptors > Self resetting when fault clears |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | EV-MCP2-SCI-IP67 |
FAQ’s for Nittan Evolution Addressable IP67 Weatherproof Manual Call Point with SCI (-ve isolator) (EV-MCP2-SCI-IP67)
Product Specification for Nittan Evolution Addressable IP67 Weatherproof Manual Call Point with SCI (-ve isolator) (EV-MCP2-SCI-IP67)
| Manual Call Point Type | Type A Outdoor |
| Operation Method | Non Frangible, Resettable |
| Operating Element | Microswitch |
| Operating Voltage | 20V d.c. to 38V d.c. |
| Quiescent Current | 200µA |
| Alarm Current | 2mA (LED ON) |
| Operating Temperature | – 25°C to + 70°C |
| Storage Temperature | – 25°C to + 70°C |
| Relative Humidity | ≤ RH95% non-condensing |
| I.P. Protection Rating | IP67 |
| Addressing Method | 8 Way DIL switch |
| Material | Polycarbonate |
| Dimensions | 88mm x 90mm x 72mm |
| Weight | 280g |
| Cable Terminals | 0.75 to 2.5 mm2 |
| Test Standards | EN54-11: 2001 + A1: 2005 EN54-17: 2005 / AC: 2007 |
| CPR Number | 0905-CPR-00440 |
| DoP Number | 00440 |
