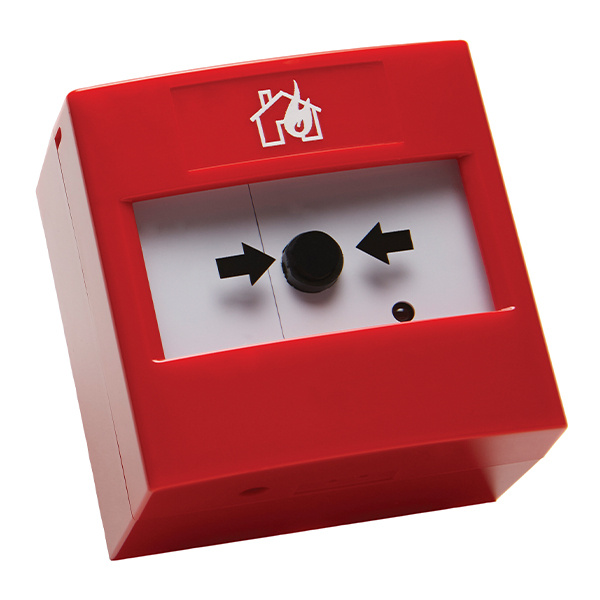

Nittan EV-MCP2-SCI-IP24 Addressable Call Point with Short Circuit Isolator
SKU
EV-MCP2-SCI-IP24
£35.05 £29.21
Nittan EV-MCP2-SCI-IP24 Addressable Call Point with Short Circuit Isolator
- Buy 10 for £34.78 £28.98 each and save 1%
- Buy 20 for £34.50 £28.75 each and save 2%
- Buy 40 for £34.22 £28.52 each and save 2%
The Nittan Evolution EV-MCP-SCI-IP24 is a Type A Indoor Manual Call Point, with integral –ve line Short circuit isolator compatible with Evolution analogue addressable system devices.
The Manual Call Point comprises a Non Frangible, Resettable, operating face with an LED provided to Indicate Alarm active condition.
The device is provided with a Surface mount Backbox and an adaptor plate to allow flush mounting.
The address may be set using DIL switch on the Device.
The Short Circuit Isolator will protect the system, whilst allowing the device to continue communication from the opposite side. The isolator will self-reset when the fault clears.
Surface or Flush mount Back Box Shall be 35mm Deep
Not compatible with Advanced MxPro4 (Mx4000) Panel. Please use Non-SCI model.
It is not possible to mix +ve and -ve isolator styles on a system.
All wiring must conform to the current edition of IEE Wiring regulations and BS5839 Part 1 All loop Cable Screens shall be connected together, but must be Isolated from Ground.
Cable Screens shall be connected to Earth Ground within the Control Panel ONLY.
| Key Features |
|---|
| > Fully integrated -ve Line Isolator* > Easily resettable with dedicated key > Supplied with Surface and Flush adaptors > Self resetting when fault clears |
| Manufacturer | Nittan |
|---|---|
| MPN | EV-MCP2-SCI-IP24 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Manual Call Point Type | Type A Indoor |
| Operation Method | Non Frangible, Resettable |
| Operating Element | Microswitch |
| Operating loop Voltage | 20V d.c. to 35V d.c. |
| Quiescent Current | 200µA |
| Alarm Current | 2mA (LED ON) |
| Current in short circuit | 13 mA |
| Operating Temperature | – 25°C to + 70°C |
| Storage Temperature | – 25°C to + 70°C |
| Relative Humidity | ≤ RH95% non-condensing |
| I.P. Protection Rating | IP24 |
| Cable terminals | 0.75 to 2.5 mm2 |
| Material | POM / Polycarbonate |
| Dimensions | Flush - 87mm x 87mm x 23mm Surface - 87mm x 87mm x 58mm |
| Weight | 115g |
| Test Standards | EN54-11: 2001 + A1: 2005 EN54-17: 2005 / AC: 2007 |
| CPR Number | 0905-CPR-00440 |
| DoP Number | 00440 |
