Nittan Evolution Addressable Manual Call Point (EV-MCP2-IP24)
SKU
EV-MCP2-IP24
£35.28
£29.40

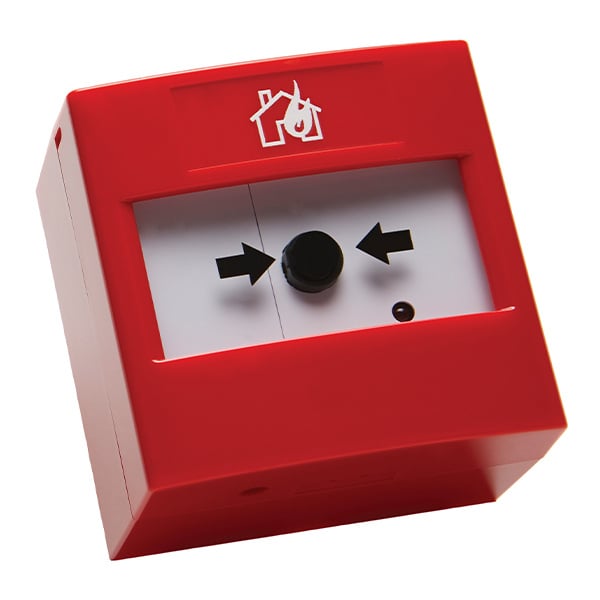

Nittan EV-MCP2-IP24 Addressable Manual Call Point
Limited Stock
Product Details for Nittan Evolution Addressable Manual Call Point (EV-MCP2-IP24)
The Nittan Evolution EV-MCP2-IP24 is an STI ‘ReSet’ IP24 housed, surface mounting manual call point. It is DIL Switch Addressed and comes complete with both Backbox and RF Wall Plate as standard.
All wiring must conform to the current edition of IEE Wiring regulations and BS5839 Part 1 All loop Cable Screens shall be connected together, but must be Isolated from Ground.
Cable Screens shall be connected to Earth Ground within the Control Panel ONLY.
Key Features of the EV-MCP2-IP24 |
|---|
|
> STI “Reset” IP24 Housing
> IP24 Rated > DIL Switched Addressed > Includes Backbox and RF Wall Plate > Replaces EV-MCP Reset Call Points |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | EV-MCP2-IP24 |
Write Your Own Review
FAQ’s for Nittan Evolution Addressable Manual Call Point (EV-MCP2-IP24)
No questions yet. Be the first to ask the question!
Product Specification for Nittan Evolution Addressable Manual Call Point (EV-MCP2-IP24)
| Part Number | EV-MCP2-IP24 |
| Description | Analogue Evolution Type A Indoor Manual Call Point |
| Computer Reference Number | F16N82201 |
| Operation Method | Non Frangible, Resettable |
| Operating Element | Microswitch |
| Operating Voltage | 20V d.c. to 35V d.c. |
| System Voltage | 35V d.c. |
| Quiescent Current | 200µA |
| Alarm Current | 2mA (LED ON) |
| Operating Temperature | – 10°C to + 55°C |
| Storage Temperature | – 25°C to + 70°C |
| Charging Time | 1 minutes |
| Relative Humidity | ≤ RH95% non-condensing |
| I.P. Protection Rating | IP24 |
| Addressing Method | 8 Way DIL switch |
| Material | POM / Polycarbonate |
| Dimensions | 87mm x 87mm x 23mm |
| Back Box Depth | Surface or Flush shall be 35mm |
| Mass | 115gms |
| Connections | Flying Leads |
| CE Conformity | EN54-11:2001/A1:2005 |
| CPR Number | 2531-CPR-232.1690 |
| DoP Number | 1690 |
