Nittan Evolution Addressable 4-20mA Input/Output Module with Isolator (EV-IO-420)
Product Details for Nittan Evolution Addressable 4-20mA Input/Output Module with Isolator (EV-IO-420)

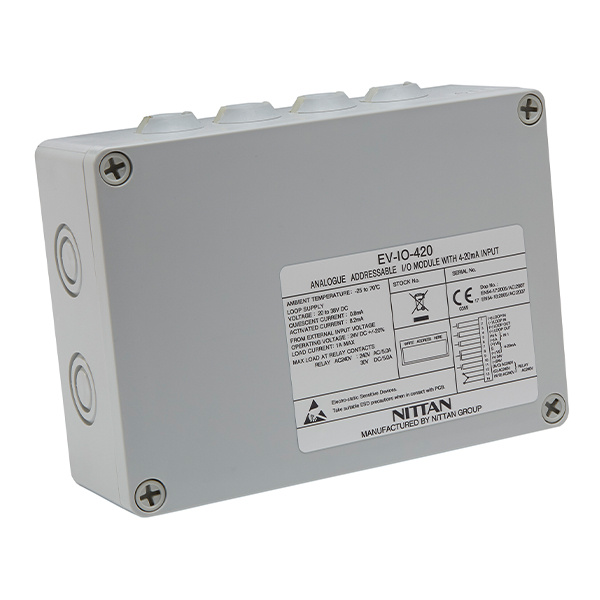

The Nittan EV-IO-420 is a 4-20mA Input / Output module, with integral –ve line Short circuit isolator compatible with Evolution analogue addressable system devices.
The 4-20mA input can be configured to operate in Sink or Source mode.
The Module includes setting options for a normally closed contact input and Fail Safe mode for Door release requirement.
LEDs are provided to indicate 4-20mA Input, Input & Output active, Fault and Isolator Open.
Device address may be set using EV-AD2-EXT Hand held programmer.
The Short Circuit Isolator will protect the system, whilst allowing the device to continue communication from the opposite side. The isolator will self-reset when the fault clears.
Not compatible with Advanced MxPro4 (Mx4000) Panel. Please use Non-SCI model.
It is not possible to mix +ve and -ve isolator styles on a system.
The following resistors are required for Fault and Alarm monitoring:
- EOL = 10k Ohm
- Alarm = 470 / 680 Ohm
Key Features of the EV-IO-420 |
|---|
|
> 1 x Class B Input
> 1 x 4-20mA Input > 5A@240Vac Rated Relay > Integral -ve Isolater > EEPROM Addressed (Programmer) |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | EV-IO-420 |
FAQ’s for Nittan Evolution Addressable 4-20mA Input/Output Module with Isolator (EV-IO-420)
Product Specification for Nittan Evolution Addressable 4-20mA Input/Output Module with Isolator (EV-IO-420)
| Operating loop voltage | 20 to 38 Vdc |
| Quiescent current | 630 µA |
| Alarm current | 7.8 mA |
| Current in short circuit | 15 mA |
| External PSU for 4-20 mA operation | 19.2 to 28.8 Vdc |
| Inputs | 1 x 4-20 mA 1 x Class B |
| Output relay contact rating | 1 x 5 Amps @ 240 Vac or 5 Amps @ 30 Vdc |
| Operating temperature | -10°C to +55°C |
| Storage temperature | -25°C to +65°C |
| Relative humidity | < RH 95% (Non-condensing) |
| Cable terminals | 0.75 to 2.5 mm2 |
| Material | PC/ABS |
| Weight | 450 g |
