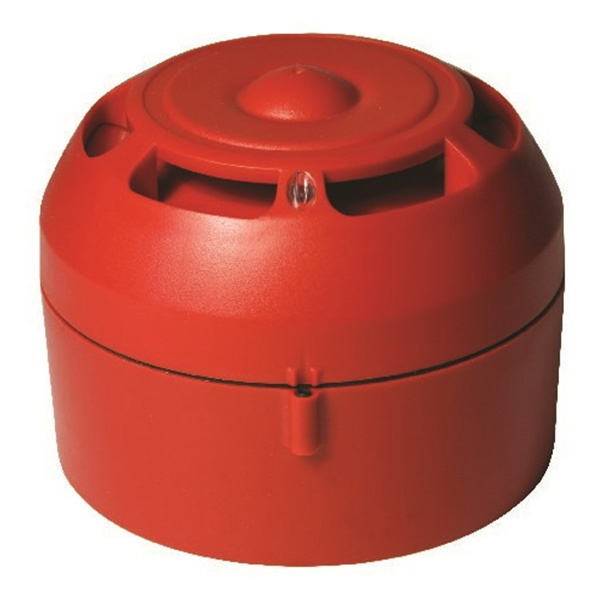

Nittan Evolution Addressable High Output Sounder with Isolator (EV-HIOP-SDR-SCI)
SKU
EV-HIOP-SDR-SCI
£84.24
£70.20
Nittan EV-HIOP-SDR-SCI Evolution Addressable High Output Sounder with Short Circuit Isolator (-ve Isolator)
In Stock
Product Details for Nittan Evolution Addressable High Output Sounder with Isolator (EV-HIOP-SDR-SCI)
IP65 rated as standard, the EV-HIOP-SDR-SCI is an extremely cost effective wall mounted Sounder with Short Circuit Isolator. It comes with 32 alarm tones (3 Approved) to choose from and individually controlled alarm and alert tones, allowing customers to choose a combination that works for any installation. It is EEPROM Addressed (Programmer) and features FSK signalling protocol for robust, reliable communications.
*Note:+ve and -ve isolator styles cannot be mixed on a system.
Not compatible with Advanced MxPro4 (Mx4000) Panel. Please use Non-SCI model.
Contact Nittan Technical Support for more details and information on panel compatibility.
Key Features of the EV-HIOP-SDR-SCI |
|---|
|
> IP65 rated
> 32 Tones DIP Switch Selected (3 Approved Tones) > EEPROM Addressed (Programmer) > FSK Signalling Protocol |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | EV-HIOP-SDR-SCI |
Write Your Own Review
FAQ’s for Nittan Evolution Addressable High Output Sounder with Isolator (EV-HIOP-SDR-SCI)
No questions yet. Be the first to ask the question!
Product Specification for Nittan Evolution Addressable High Output Sounder with Isolator (EV-HIOP-SDR-SCI)
| Manufacturer: | Nittan |
| Product Code: | EV-HIOP-SDR-SCI |
| Sounder Device: | Rocking Armature Transducer |
| Sounder Output: | Up to 95 dB(A) @ 1 m (Tone/Angle dependent) |
| Sounder Tones: | 32 Tones DIP Sw select (3 Approved Tones) |
| Operating Voltage: | 24V DC to 38V DC |
| Quiescent Current: | 200µA |
| Sounder Operating Current: | 20mA |
| Current in short circuit: | 13mA |
| Operating Temperature: | – 25°C to + 70°C |
| Storage Temperature: | – 25°C to + 70°C |
| Relative Humidity: | ≤ RH95% non-condensing |
| I.P. Protection Rating: | IP65 |
| Cable terminals: | 0.75 to 2.5 mm2 |
| Material: | ABS |
| Dimensions: | ∅104mm x 80mm |
| Mass: | 225g |
| Standards / Certification: | EN54-3: 2001 / A2: 2006 EN54-17: 2005 / AC: 2007 |
| Short Circuit Isolator | |
| Minimum sw open voltage (Vso min): | 9 Vdc |
| Maximum sw open voltage (Vso max): | 11 Vdc |
| Minimum sw close voltage (Vsc min): | 10 Vdc |
| Maximum sw close voltage (Vsc max): | 13 Vdc |
| Maximum line current (Ic max): | 800 mA |
| Maximum switching current (Is max): | 1500 mA |
| Maximum leakage current (Il max): | 13 mA |
| Maximum switch resistance (Zc max): | 150 mΩ |
