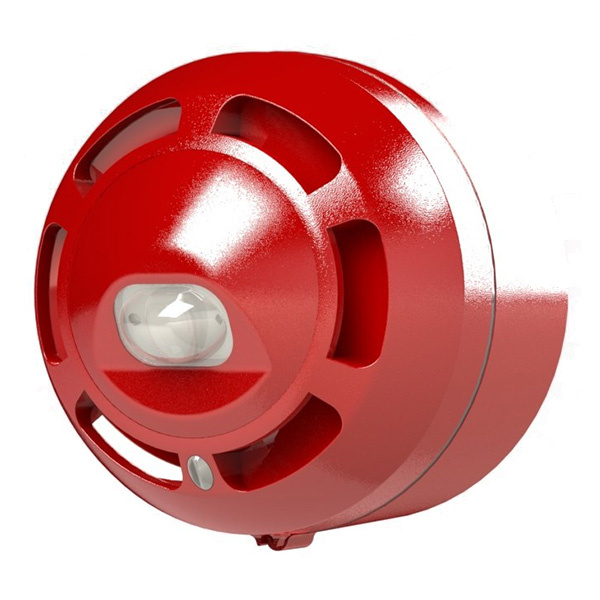

Nittan Evolution Addressable High Output Sounder Beacon (Red with Isolator) (EV-HIOP-SB-R-SCI)
Product Details for Nittan Evolution Addressable High Output Sounder Beacon (Red with Isolator) (EV-HIOP-SB-R-SCI)
IP65 rated as standard, the EV-HIOP-SB-R-SCI is an extremely cost effective Type B outdoor wall mounted Red LED Sounder / Beacon (VAD) and is available in Versions with and without Short Circuit Isolator. It comes with 32 alarm tones (3 Approved) to choose from and individually controlled alarm and alert tones, allowing customers to choose a combination that works for any installation. It is EEPROM Addressed (Programmer) and features FSK signalling protocol for robust, reliable communications.
*Note:+ve and -ve isolator styles cannot be mixed on a system.
Not compatible with Advanced MxPro4 (Mx4000) Panel. Please use Non-SCI model.
Contact Nittan Technical Support for more details and information on panel compatibility.
Key Features of the EV-HIOP-SB-R-SCI |
|---|
|
> IP65 rated with -ve Isolator
> 32 Tones DIP Switch Selected (3 Approved Tones) > EEPROM Addressed (Programmer) > FSK Signalling Protocol > Beacon Rating W 2.4-3.0 / 22m3 |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | EV-HIOP-SB-R-SCI |
FAQ’s for Nittan Evolution Addressable High Output Sounder Beacon (Red with Isolator) (EV-HIOP-SB-R-SCI)
Product Specification for Nittan Evolution Addressable High Output Sounder Beacon (Red with Isolator) (EV-HIOP-SB-R-SCI)
| Manufacturer: | Nittan |
| Product Code: | EV-HIOP-SB-R-SCI |
| Sounder Device: | Rocking Armature Transducer |
| Sounder Output: | Up to 95 dB(A) @ 1 m (Tone/Angle dependent) |
| Sounder Tones: | 32 Tones DIP Sw select (3 Approved Tones) |
| Beacon Type: | Type B Outdoor |
| Beacon Device: | High Power LED Red |
| Beacon VAD Specification: | W 2.4-3.0 / 22m3 |
| Operating Loop Voltage: | 24V DC to 38V DC |
| Quiescent Current: | 200µA |
| Sounder Operating Current: | 20mA |
| Current in short circuit: | 13mA |
| Operating Temperature: | – 25°C to + 70°C |
| Storage Temperature: | – 25°C to + 70°C |
| Relative Humidity: | ≤ RH95% non-condensing |
| I.P. Protection Rating: | IP65 |
| Cable terminals: | 0.75 to 2.5 mm2 |
| Material: | ABS |
| Dimensions: | Ø104mm x 91.5mm |
| Weight: | 250g |
| Approvals / Standards: | EN54-3: 2001 / A2: 2006 EN54-17: 2005 / AC: 2007 EN54-23: 2010 |
