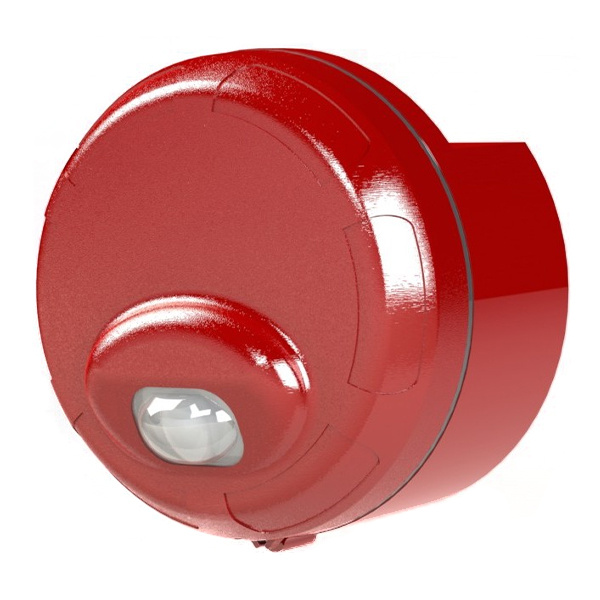

Nittan EV-HIOP-BCN-R-SCI High Output Beacon with -ve Isolator EN54-13 Red Flash

The Nittan Evolution EV-HIOP-BCN-R-SCI is a Type B Addressable Outdoor High Output Beacon (Red LED), with integral –ve line Short circuit isolator and is compatible with Evolution analogue addressable system devices.

The device enclosure is waterproof to IP65 rating and is suitable for Indoor or Outdoor installation.

It comes with 3 Beacon Flash settings (1 Approved) to choose from, allowing customers to choose which works best for any installation.

The address may be set using EV-AD2-EXT handheld programmer using the Universal Addressing Lead.

The Short Circuit Isolator will protect the system, whilst allowing the device to continue communication from the opposite side. The isolator will self-reset when the fault clears.

SCI Variant Not compatible with Advanced MxPro4 (Mx4000) Panel. Please use Non-SCI model. It is not possible to mix +ve and -ve isolator styles on a system.

All wiring must conform to the current edition of IEE Wiring regulations and BS5839 Part 1

All loop Cable Screens shall be connected together, but must be Isolated from Ground. Cable Screens shall be connected to Earth Ground within the Control Panel ONLY.
