Nittan Evolution Addressable High Output Beacon EN54-13 White Flash (EV-HIOP-BCN)
Product Details for Nittan Evolution Addressable High Output Beacon EN54-13 White Flash (EV-HIOP-BCN)

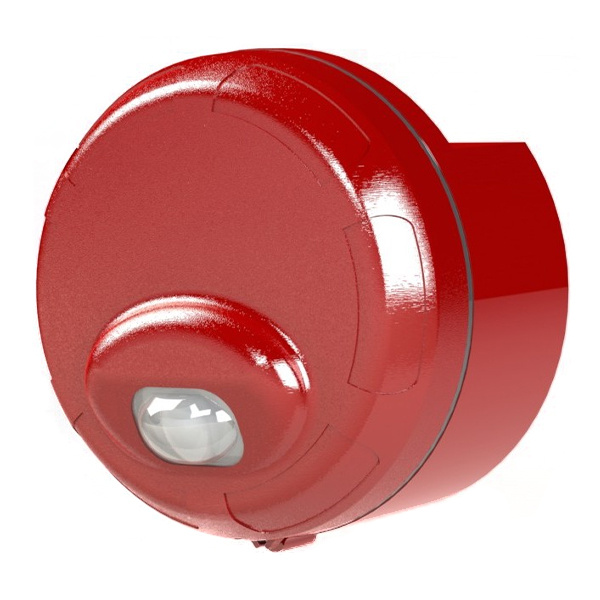

The Nittan Evolution EV-HIOP-BCN is a Type B Addressable Outdoor High Output Beacon (White LED) and is compatible with Evolution analogue addressable system devices.
The device enclosure is waterproof to IP65 rating and is suitable for Indoor or Outdoor installation.
It comes with 3 Approved Beacon Flash settings to choose from, allowing customers to choose which works best for any installation.
The address may be set using EV-AD2-EXT handheld programmer using the Universal Addressing Lead.
All wiring must conform to the current edition of IEE Wiring regulations and BS5839 Part 1
All loop Cable Screens shall be connected together, but must be Isolated from Ground. Cable Screens shall be connected to Earth Ground within the Control Panel ONLY.
Key Features of the EV-HIOP-BCN |
|---|
|
> IP65 rated
> Type B Indoor/Outdoor Beacon Without Isolator > EEPROM Addressed (Programmer) > FSK Signalling Protocol > Beacon Rating W 2.4-7.5 / 135m3 |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | EV-HIOP-BCN |
FAQ’s for Nittan Evolution Addressable High Output Beacon EN54-13 White Flash (EV-HIOP-BCN)
Product Specification for Nittan Evolution Addressable High Output Beacon EN54-13 White Flash (EV-HIOP-BCN)
| Beacon Type | Type B Outdoor |
| Beacon Device | High Power White LED |
| Beacon VAD Specification | W 2.4-5.5 / 73m3 W 2.4-7.5 / 135m3 |
| Operating loop voltage | 24 to 38 Vdc |
| Quiescent current | 200 µA |
| Alarm current | 20 mA |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -25°C to +70°C |
| Relative humidity | < RH 95% (Non-condensing) |
| Cable terminals | 0.75 to 2.5 mm2 |
| Material | ABS |
| Weight | 190 g |
| Dimensions Flush | Ø104mm x 76.5mm |
| I.P. Protection Rating | IP65 |
| Test Standards | EN54-17: 2005 / AC: 2007 EN54-23: 2010 |
| CPR Certificate | 0905-CPR-00465 |
| DoP Number | 00465 |
