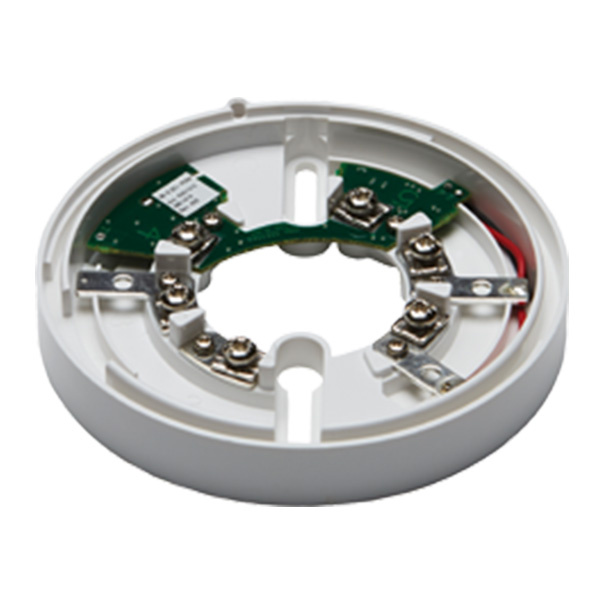

Nittan Evolution Addressable Detector Base with SC Isolator (EV-B-SCI)
SKU
EV-B-SCI
£15.84
£13.20
Nittan EV-B-SCI Evolution Addressable Detector Mounting Base with Short Circuit Isolator (-ve Line Isolator)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Nittan Evolution Addressable Detector Base with SC Isolator (EV-B-SCI)
The EV-B-SCI is a low profile detector base with integral Short Circuit Isolator (-ve Line*), suitable for use with all types of Evolution analogue addressable detectors. The base plate is designed for use in indoor locations and the cable entry is from the centre, similarly to the standard base. The EV-B-SCI is designed to provide Short Circuit Protection, without the need for any special device setting and is self resetting if the fault clears.
Note: +ve and -ve isolator styles cannot be mixed on a system. Not compatible with Advanced MxPro4 (Mx4000) Panel. Please use Non-SCI model. Contact Nittan Technical Support for more details and information on panel compatibility.
Key Features of the EV-B-SCI |
|---|
|
> Low Profile Base design
> -ve Line Isolator* > Low quiescent current > Self resetting when fault clears |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | EV-B-SCI |
Write Your Own Review
FAQ’s for Nittan Evolution Addressable Detector Base with SC Isolator (EV-B-SCI)
No questions yet. Be the first to ask the question!
Product Specification for Nittan Evolution Addressable Detector Base with SC Isolator (EV-B-SCI)
| Operating voltage: | 22 VDC to 38 VDC |
| Quiescent current: | 60 µA |
| Current when short circuited: | 13 mA |
| Ingress protection: | IP22 |
| Operating temperature: | -10°C to +55°C |
| Relative humidity: | RH 95% |
| Cable terminals: | Max 2.5 mm2 |
| Material: | PC/ABS |
| Weight: | 70g |
| Minimum sw open voltage (Vso min): | 9 VDC |
| Maximum sw open voltage (Vso max): | 11 VDC |
| Minimum sw close voltage (Vsc min): | 10 VDC |
| Maximum sw close voltage (Vsc max): | 12 VDC |
| Maximum line current (Ic max): | 800 mA |
| Maximum switching current (Is max): | 1500 mA |
| Maximum leakage current (Il max): | 13 mA |
| Maximum switch resistance (Zc max): | 120 mΩ |
| Test Standards: | EN54-17: 2005 / AC: 2007 |
