Nittan EV-240V-MRA Non-Addressed Mains (230v) Interface Relay
Discontinued
Alternative Products
Product Details for Nittan EV-240V-MRA Non-Addressed Mains (230v) Interface Relay

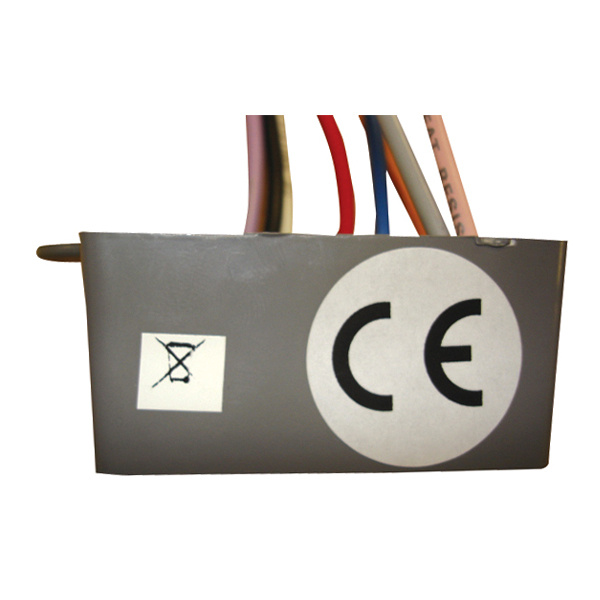

The Nittan EV-240V MRA High Voltage Relay Interface is a non-addressable multi-voltage relay module (operating from 24V dc, 24V ac, 120V ac and 240V ac).
The encapsulated EV-240V MRA provides a 10 amp volt-free contact that can be used to extend the contact ratings of EV-OP Addressable Relay Module applications.
A maximum of four EV-240V MRA can be individually driven and controlled by an EV-MIO Small Addressable Multi-Input/Output module if all EV-240V MRA are powered by 120V ac or 240V ac.
For ac operation, no external dc power supply unit is required to operate the relay. When used to switch 24V dc, the must be provided with an external 24V dc supply which should be switched through the clean relay contacts of an EV-MIO or EV-OP
Key Features of the EV-240V-MRA |
|---|
|
> Contained on a single sided PCB which is fitted to a plastic tray and then potted
> Relay unit suitable for switch 24v - 240v > Non Addressed |
| Brand | Nittan |
|---|---|
| Manufacturer Part No. | EV-240V-MRA |
FAQ’s for Nittan EV-240V-MRA Non-Addressed Mains (230v) Interface Relay
Product Specification for Nittan EV-240V-MRA Non-Addressed Mains (230v) Interface Relay
| Manufacturer: | Nittan |
| Product Code: | EV-240V MRA |
| Input Voltages: | 24V DC, 24V AC, 120V AC, 240V AC |
| Contact Ratings: | 8A @ 28V DC, 10A @ 28V AC and 120V AC, 5A : 240V AC (Resistive) |
| Standard: | EN54-18:2005 |
