Siemens OH110 Cerberus FIT Conventional Multi-Sensor Fire Detector (S54372-F11-A1)
SKU
S54372-F11-A1
£26.23
£21.86
Siemens OH110 Cerberus FIT Conventional Multi-Sensor Fire Detector (S54372-F11-A1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens OH110 Cerberus FIT Conventional Multi-Sensor Fire Detector (S54372-F11-A1)
Siemens OH110 Multi Sensor Fire Detector is for the detection of flaming fires caused by the combustion of liquid and solid matters, as well as smouldering fires and for reliable fire detection in environments with deceptive phenomena.
Selectable detection behaviour by two parameter sets: parameter set 1 (Sensitive) and parameter set 2 (Robust).
Key Features of the S54372-F11-A1 |
|---|
|
> Point detector

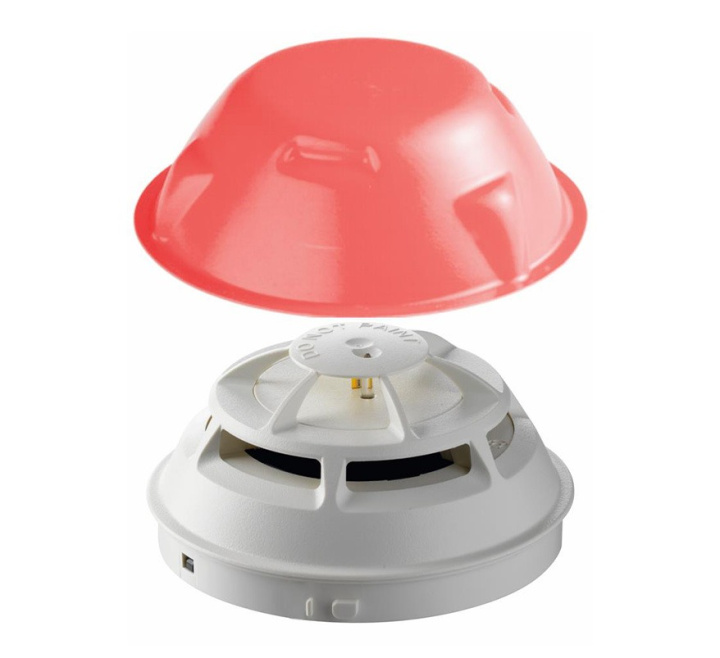

> Detector dust cap to protect the point detector during the construction phase > Functions according to the scattered light principle with one sensor, optical forward scattering > Opto-electronic measuring chamber which obstructs disruptive extraneous light but provides excellent detection of smoke particles > An additional heat sensor increases the point detector's immunity to deceptive phenomena > Selectable detection behaviour due to two parameter sets – Parameter set 1 'Sensitive', Parameter set 2 'Robust' > Immunity to false alarms > Detects flaming and smouldering fires of solid and liquid substances > Reliable fire detection in an environment with deceptive phenomena |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | OH110 |
| Product Series | Cerberus FIT |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens OH110 Cerberus FIT Conventional Multi-Sensor Fire Detector (S54372-F11-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens OH110 Cerberus FIT Conventional Multi-Sensor Fire Detector (S54372-F11-A1)
| Product: | Siemens Multi Sensor Fire Detector (collective) |
| Product code: | S54372-F11-A1 |
| Operating voltage: | DC16 - 28V |
| Standard: | EN 54-7 |
| Operating temperature: |
-10 to 50 °C |
| Protection category: | IP40; IP42 with detector base seal; IP44 with base attachment wet |
| Storage temperature: |
-30 to 70 °C |
| Relative humidity: | ≤96 % rel. |
| Colour: |
Pure White RAL 9010 |
| Quiescent current: | Max. 100 μA |
| Communication protocol: | Collective/Conventional |
