Siemens FT2001-A1 Cerberus PRO Mimic Display Driver (Up to 2 x 24-LED sets per driver) (A5Q00014417)
SKU
A5Q00014417
£441.07
£367.56
Siemens FT2001-A1 Cerberus PRO Mimic Display Driver (Up to 2 x 24-LED sets per driver) (A5Q00014417)
- Buy 10 for £432.44 £360.37 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FT2001-A1 Cerberus PRO Mimic Display Driver (Up to 2 x 24-LED sets per driver) (A5Q00014417)

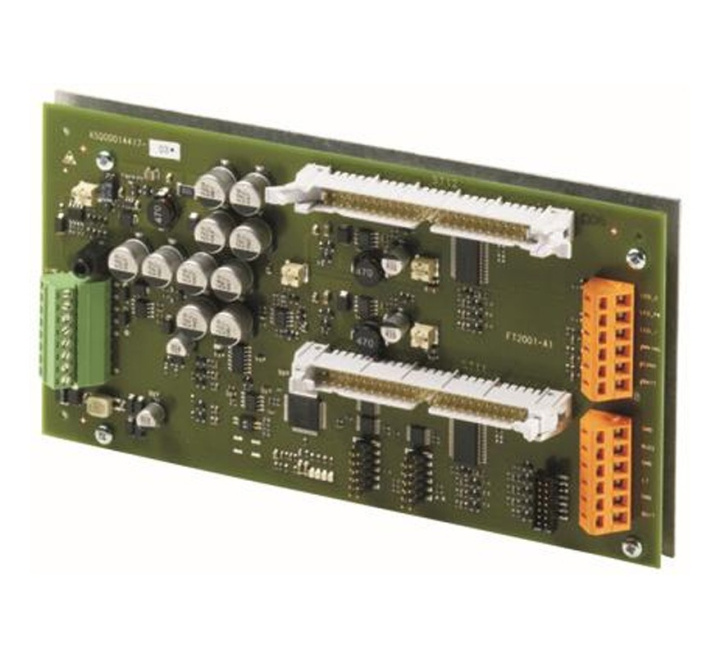

The Siemens FT2001-A1 Mimic Display Driver has 2x 24 outputs for LED activation for mimic display panels. Connection to LED via flat cable F50F410 (50-wire, 24 red LEDs, cable length 1 m, must be ordered separately). 2 control outputs for 'Local buzzer' and 'LED operation'. 2 inputs for 'Switch-off buzzer' and 'Lamp test'. Integrated line separator.
Power supply via FDnet/C-NET, separate 24 V power supply possible.
The mimic display driver can be operated in loops or stub lines.
MC link plug-in point for firmware update.
Key Features of the A5Q00014417 |
|---|
|
> Mimic display driver for a total of 48 LED indicators (without housing)
> 2 LED ribbon cables F50F410 with 24 red LEDs can be connected > 2 control outputs for local buzzer and LED operating status display > 2 inputs for the 'Silence buzzer' and 'LED test' function buttons > Mimic display driver can be connected via FDnet/C-NET > For customer installation in any housing > Power supply/connection via FDnet/C-NET > Outputs are freely programmable > 2x 24 outputs for controlling LEDs on mimic displays > 3 outputs for expanded periphery > 2 control outputs for local buzzer and LED operating status display > 2 inputs for the 'Silence buzzer' and 'LED test' function buttons > Integrated line separator > External, electrically isolated AC/DC supply possible > MC link connection socket for firmware update |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FT2001-A1 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FT2001-A1 Cerberus PRO Mimic Display Driver (Up to 2 x 24-LED sets per driver) (A5Q00014417)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FT2001-A1 Cerberus PRO Mimic Display Driver (Up to 2 x 24-LED sets per driver) (A5Q00014417)
| Product: | Siemens Mimic Display Driver |
| Product code: | A5Q00014417 |
| Dimensions: | W:106mm x H:200mm x D:45mm |
| Standard: | EN54-17, EN54-18 |
| Operating current: | 45 mA |
| Cable capacity: | 0.08 - 1.5 mm2 |
| Key input (buzzer off, lamp test): | 2 |
| Communication protocol: | FDnet/C-NET |
| Quiescent current: | Max. 5 mA |
| External supply input: | DC 14 - 32 V, galvanically isolated AC 11 - 22 V, galvanically isolated |
| System compatibility: | FDnet -> FS20 C-NET -> FS720 |
| Operating temperature: | 0 to +40 °C |
| Storage temperature: | -20 to +60 °C |
| Relative humidity: | ≤95 % rel. |
| Operating LED output: | max. 2.5 mA @ 2.5 VDC |
| Buzzer output: | Max. 5 mA @ DC 12 V |
| Operating voltage: | DC 12 - 32V |
| Power supply: | Loop powered, external |
| No. of addresses: | 1 |
| Protection category: | IP30 |
