Global Fire Manually Addressed Module for Conventional Manual Call Points (MAM-RED)
SKU
MAM(RED)
£21.60
£18.00
Global Fire Manually Addressed Module for Conventional Manual Call Points (MAM-RED)
- Buy 10 for £21.26 £17.72 each and save 2%
- Buy 20 for £20.60 £17.17 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Global Fire Manually Addressed Module for Conventional Manual Call Points (MAM-RED)

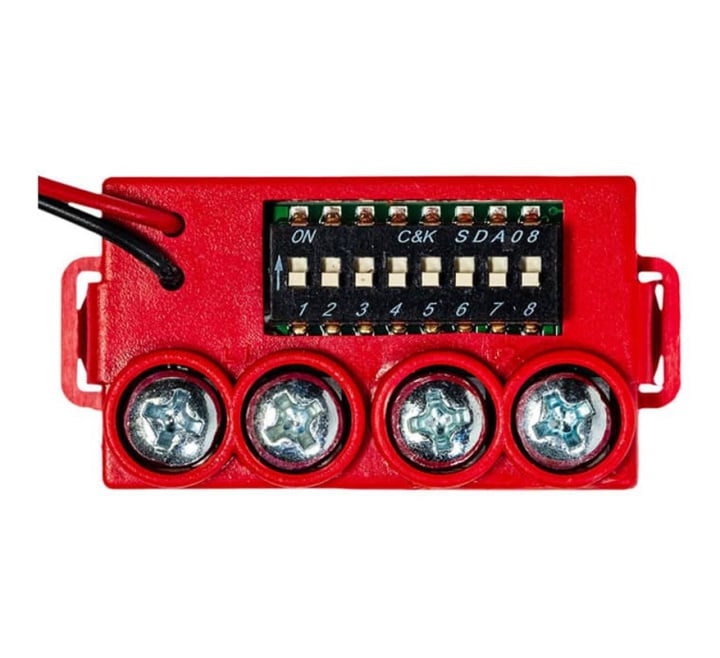

The Global Fire MAM-RED allows the connection and addressing of conventional micro input and conventional call point. With its small and convenient 8-way DIL switch for address setting and configuration, the MAM provides the facility to upgrade all the components of a conventional system to a full addressable system, making it an ideal solution for retrofitting installations.
Key Features of the MAM(RED) |
|---|
|
> Allows the connection and addressing of conventional manual call points
> Small with 8-way DIL switch for address setting and configuration > Facility to upgrade components of a conventional system to a fully addressable system > Suitable for retrofits |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | MAM(RED) |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Global Fire Manually Addressed Module for Conventional Manual Call Points (MAM-RED)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire Manually Addressed Module for Conventional Manual Call Points (MAM-RED)
| Product code: | MAM-RED |
| Dimensions: |
W: 24mm x L:48mm x H:12mm |
| Supply voltage: |
Loop powered - 17V to 30V DC |
| Current - Quiescent: |
1.1 mA |
| Current - Alarm: | 12 mA |
| Address range: | 1-125 (Detectors, MCP, I/O) |
| Operation temperature: | -10oC to +50oC |
| Max. Cable size: | 2.5mm2 |
| Max. humidity: | 95% RH Non-Condensing |
| Colour: | Red |
| Weight: | 18g |
