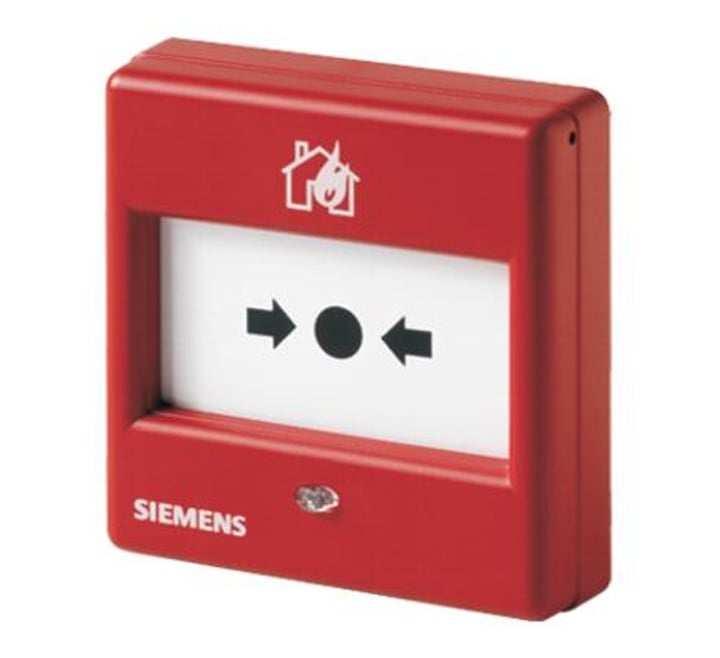

Siemens FDM225-RG Cerberus PRO Manual Call Point with Glass Plate (Red) (No Backbox) (A5Q00013434)
SKU
A5Q00013434
£48.29
£40.24
Siemens FDM225-RG Cerberus PRO Manual Call Point with Glass Plate (Red) (No Backbox) (A5Q00013434)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDM225-RG Cerberus PRO Manual Call Point with Glass Plate (Red) (No Backbox) (A5Q00013434)
The Siemens FDM225-RG call point is for immediate manual actuation of a fire alarm. For indoor applications. Direct alarm actuation by pushing in the glass insert. By replacing the glass insert the pushbutton is reset and the device is ready for operation again. For surface- and recess-mounted feed lines in easily accessible places.
For surface mounting the back box FDMH295-x must be ordered separately.
Key Features of the A5Q00013434 |
|---|
|
> Two-wire installation for all cable types
> Integrated line separator: The defective part on the detector line is located by the fire control panel and isolated between two FDnet/C-NET devices. > Built-in alarm indicator (LED) > Address automatically issued during commissioning > Protected electronics > Connection terminal DBZ1190-AB (accessory) can be mounted if shielded cables are used |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDM225-RG |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Red |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDM225-RG Cerberus PRO Manual Call Point with Glass Plate (Red) (No Backbox) (A5Q00013434)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDM225-RG Cerberus PRO Manual Call Point with Glass Plate (Red) (No Backbox) (A5Q00013434)
| Operating voltage | DC 12…33 V |
| Operating temperature | -25…70 °C |
| Protection category | IP44 |
| Relative humidity | ≤95 % rel. (no condensation) |
| Standard | EN 54-11 , EN 54-17 |
| Dimensions (W x H x D) | 87 x 87 x 20 mm |
| Quiescent current | 180 μA |
| Storage temperature | -30...+75 °C |
| Terminal block | 0,28…1,5 mm² |
| Communication protocol | FDnet/C-NET |
| Color | Flame red, ~RAL 3000 |
| System compatibility | FDnet → FS20, AlgoRex, SIGMASYS C-NET → FS720 |
| Number of addresses | 1 |
