Siemens FDM1101-RP Cerberus FIT Conventional Manual Call Point with Resettable Element (Red) (No Backbox) (S54371-F6-A2)
SKU
S54371-F6-A2
£31.94
£26.62
Siemens FDM1101-RP Cerberus FIT Conventional Manual Call Point with Resettable Element (Red) (No Backbox) (S54371-F6-A2)
In Stock
Product Details for Siemens FDM1101-RP Cerberus FIT Conventional Manual Call Point with Resettable Element (Red) (No Backbox) (S54371-F6-A2)

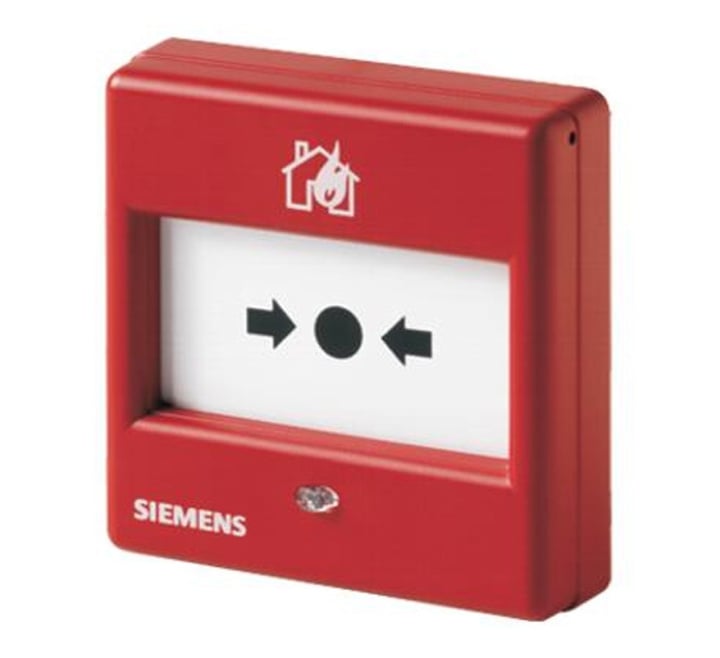

Siemens FDM1101-RP Manual Call Point with resettable plastic element - for immediate manual actuation of a fire alarm. For indoor applications. Direct alarm actuation by pushing on the plastic element.
The switch is reset with the key and the device is ready for operation again. For surface- and recess-mounted feed lines in easily accessible places.
For surface mounting the back box FDMH295-x must be ordered separately (see attached datasheet)
Key Features of the S54371-F6-A2 |
|---|
|
> Collective/SynoLINE600
> For surface and recessed mounting (for surface mounting order back box separately – see attached datasheet) > Plastic insert, resettable > Two-wire installation for all cable types > Optional connection terminal DBZ1190-AB (3-pin, 0.5-2.5 mm2) for connecting shielded cables > Protected electronics |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDM1101-RP |
| Product Series | Cerberus FIT |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Colour | Red |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDM1101-RP Cerberus FIT Conventional Manual Call Point with Resettable Element (Red) (No Backbox) (S54371-F6-A2)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDM1101-RP Cerberus FIT Conventional Manual Call Point with Resettable Element (Red) (No Backbox) (S54371-F6-A2)
| Product: | Siemens Manual Call Point with Plastic Element, Resettable |
| Product code: | S54371-F6-A2 |
| Dimensions: |
W:87mm x H:87mm x D:20mm |
| Operating voltage: | DC 16 - 28V |
| Operating temperature: | -25 to +70 °C |
| Protection category: | IP44 |
| Relative humidity: | ≤95 % rel. (no condensation) |
| Standard: | EN54-11 |
| Operating current: | 60 - 100 mA |
| Storage temperature: | -30 to +75 °C |
| Terminal block: | 0.28 - 1.5mm2 |
| Communication protocol: | Collective/SynoLINE600 |
| Colour: | Flame red, ~RAL 3000 |
