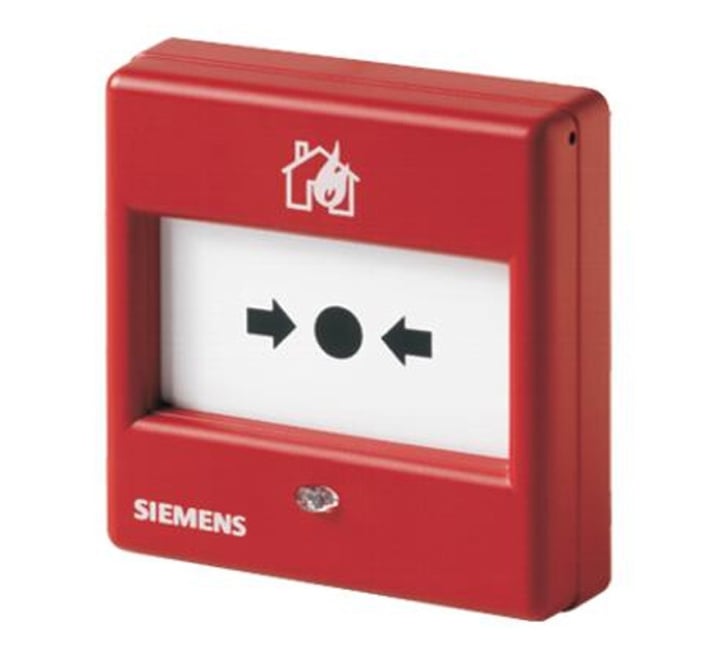

Siemens FDM1101-RG Cerberus FIT Conventional Manual Call Point with Glass Plate (Red) (No Backbox) (S54371-F6-A1)
SKU
S54371-F6-A1
£30.72
£25.60
Siemens FDM1101-RG Cerberus FIT Conventional Manual Call Point with Glass Plate (Red) (No Backbox) (S54371-F6-A1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDM1101-RG Cerberus FIT Conventional Manual Call Point with Glass Plate (Red) (No Backbox) (S54371-F6-A1)
Siemens FDM1101-RG Manual Call Point with Glass Plate - for immediate manual actuation of a fire alarm. For indoor applications. Direct alarm actuation by pushing in the glass plate.
By replacing the glass plate the push button is reset and the device is ready for operation again. For surface- and recess-mounted feed lines in easily accessible places.
For surface mounting the back box FDMH295-x must be ordered separately.
Key Features of the S54371-F6-A1 |
|---|
|
> Collective/SynoLINE600
> For surface and recessed mounting (for surface mounting order back box separately – see attached datasheet) > Glass insert > Two-wire installation for all cable types > Optional connection terminal DBZ1190-AB (3-pin, 0.5-2.5 mm2) for connecting shielded cables > Protected electronics |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDM1101-RG |
| Product Series | Cerberus FIT |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDM1101-RG Cerberus FIT Conventional Manual Call Point with Glass Plate (Red) (No Backbox) (S54371-F6-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDM1101-RG Cerberus FIT Conventional Manual Call Point with Glass Plate (Red) (No Backbox) (S54371-F6-A1)
| Product: | Siemens Manual Call Point with Glass Plate |
| Product code: | S54371-F6-A1 |
| Dimensions: |
W:87mm x H:87mm x D:20mm |
| Operating voltage: | DC 16 - 28V |
| Operating temperature: | -25 to +70 °C |
| Protection category: | IP44 |
| Relative humidity: | ≤95 % rel. (no condensation) |
| Standard: | EN54-11 |
| Operating current: | 60 - 100 mA |
| Storage temperature: | -30 to +75 °C |
| Terminal block: | 0.28 - 1.5mm2 |
| Communication protocol: | Collective/SynoLINE600 |
| Colour: | Flame red, ~RAL 3000 |
